Payment & Shipping Terms:
|Theory:||Centrifugal Slurry Pump||Structure:||Multistage Pump|
|Usage:||Mining, Minerals Processing, Coal Preparation, Dredging, Metallurgy, Power Plant, Chemical And General Industry Applications||Power:||Electric|
|Standard Or Nonstandard:||Standard||Fuel:||Gasoline|
|Type:||AH Horizontal Slurry Pumps||Model:||AH Slurry Pumps|
|Size:||1" To 22"||Name:||Slurry Pump Rental|

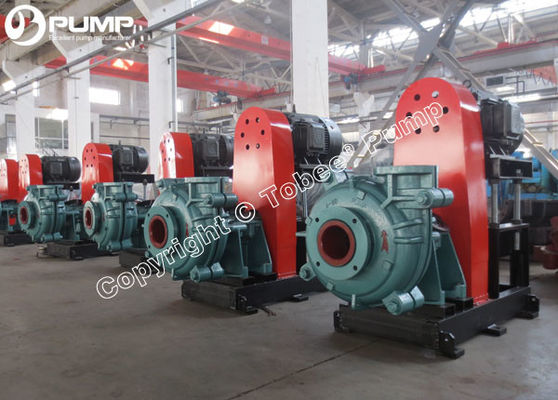

TOBEE® Slurry Pump is the most comprehensive range of centrifugal slurry pumps for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurries.
Slurry Pump Rental Specification:
Size (discharge): 1" to 22" Pump
Capacity: 10.8~ 5400 m3/hr
Head: 6m ~ 135 m
Handing solids: 0 ~ 650mm
Concentration: 0%~ 70%
Material:High chrome alloy,Rubber,Stainless steel etc.
Slurry Pump Rental Detailed Specification:
1. Horizontal, cantilevered, centrifugal, single stage slurry pump.
2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
3. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other.
4. Easily replaceable liners: Liners are bolted to the casing.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6 Discharge direction can be positioned at intervals of 45 degrees.
7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8. Sealing type: pcking seal,impeller sealing and mechanical seal.
9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
Slurry Pump Rental Performance Parameter:
|Material||Clear water performance||
Slurry Pump Rental Component Diagram:
Slurry Pump Rental Structural Drawing:
Slurry Pump Rental Shaft Seal:
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.
The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.
Slurry Pump Rental Driven Drive Type
Slurry Pump Rental Quality Control:
|Stages of manufacture||Quality cotrol activities|
|Raw material arrival||Sampling, material chemical analysis|
|Casting and composition||Material material chemical analysis of pump parts|
|Casting quality inspection|
|Key component machining||Dimension precision inspection|
|General assembly||Procedure operaion|
|Hydraulic static test|
|Performance test of pump unit||Capacity and head|
|Vibration and noise|
|Final inspection||Packaging of pump unit|
|Spare parts and accessories|
Slurry Pump Rental After-sales Service:
As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.
Packing Transport Services
Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.
Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.
Technical Support Services
Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.
Slurry Pump Rental On-Site Application:
1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.
2)Metallurgy:Transport various slurry for aluminium or steel manufacture.
3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.
4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.
5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.
6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.
7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.
