Detailed Product Description
Size: 1~22 Inch Pump Capacity: 3~5800m3/h
Head: 2~125m Materials: High Chrome Alloy,Rubber,Polyurethane Etc
Seal Type: Expeller Seal, Packing Seal, Mechanical Seal Impeller Suction Way: End Suction Slurry Pump
Shaft Position From The Horizontal: Horizontal Slurry Pump Warranty: One Year
Certificate: ISO,CE,SGS,DNV Application: Mining,Coal,Metallurgy,Dredging,Power Plant,Chemical Plant Etc

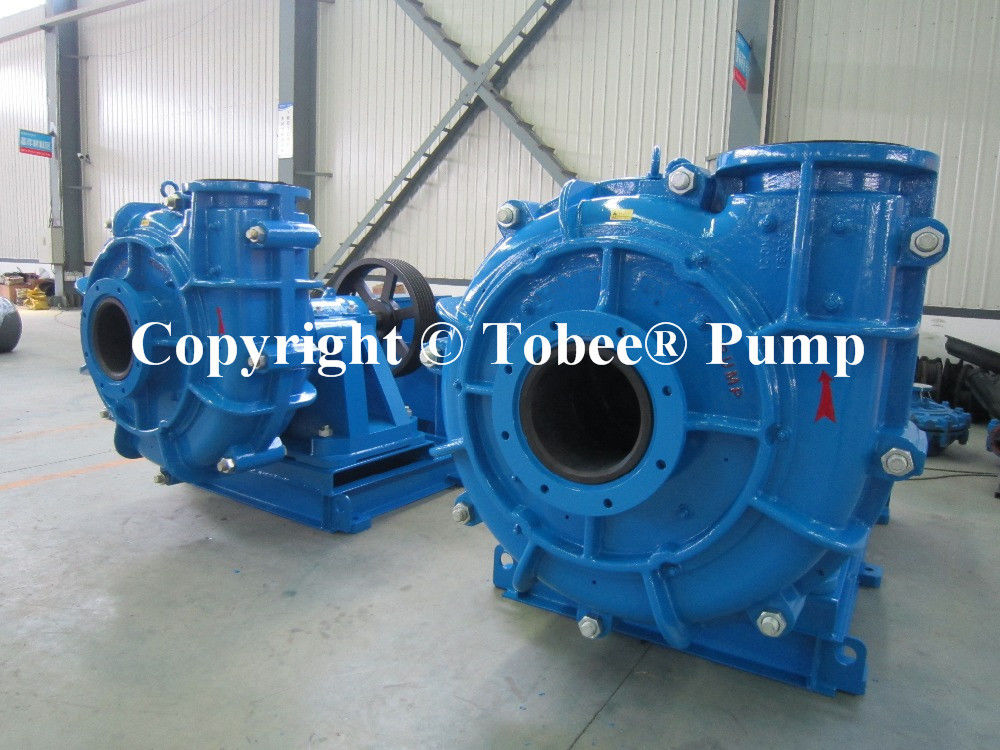

Tobee® AH slurry pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurries.



Specification:

Size (discharge): 1" to 22" Pump
Capacity: 10.8~ 5400 m3/hr
Head: 6m ~ 135 m
Handing solids: 0 ~ 650mm
Concentration: 0%~ 70%
Material:High chrome alloy,Rubber,Stainless steel etc.



Detailed specification:

1. Horizontal, cantilevered, centrifugal, single stage slurry pump.

2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

3. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other.

4. Easily replaceable liners: Liners are bolted to the casing.

5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

6 Discharge direction can be positioned at intervals of 45 degrees.

7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.

8. Sealing type: pcking seal,impeller sealing and mechanical seal.

9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.



Tobee® AH Slurry Pump Performance Parameter:

Model

Max .

Power

Material Clear water performance

Impeller

Vane No.

Liner Impeller

Capacity Q

( m3/h)

Head H

( m)

Speed n

(rpm)

Eff.η

(%)

NPSH

(m)

1.5/1B-AH 15 M M 12.6~28.8 6~68 1200~3800 40 2~4 5
RU RU 10.8~25.2 7~52 1400~3400 35 3
1.5/1B-HH 30 M M 16.2~34.2 25~92 1400~2200 20 1~5.5 5
2/1.5B-AH 15 M M 32.4~72 6~58 1200~3200 45 3.5~8 5
RU RU 25.2~54 5.5~41 1000~2600 50 2.5~5
3/2C-AH 30 M M 39.6~86.4 12~64 1300~2700 55 4~6 5
RU RU 36~75.6 13~39 1300~2100 2~4
4/3C-AH 30 M M 86.4~198 9~52 1000~2200 71 4~6 5
4/3D-AH 60
4/3C-AH 30 RU RU 79.2~180 5~34.5 800~1800 59 3~5 5
4/3D-AH 60
4/3E-HH 120 M M 126~252 12~97 600~1400 50 2~5 5
6/4D-AH 60 M M 162~360 12~56 800~1550 65 5~8 5
6/4E-AH 120
6/4D-AH 60 RU RU 144~324 12~45 800~1350 65 3~5 5
6/4E-AH 120
6/4F-HH 260 M M 100~414 34~98 600~1000 64 2~8 5
8/6E-AH 120 M M 360~828 10~61 500~1140 72 2~9 5
8/6E-AH 120 RU RU 324~720 7~49 400~1000 65 5~10 5
10/8ST-AH 560 M M 612~1368 11~61 400~850 71 4~10 5
RU RU 540~1188 12~50 400~750 75 4~12
10/8E-M 120 M M 666~1440 14~60 600~1100 73 4~10 5
10/8E-M 120 RU RU 540~1188 10~42 500~900 79 5~9 5
12/10ST-AH 560 M M 936~1980 7~68 300~800 82 6 5
M M 720~1620 7~45 300~650 80 2.5~7.5
14/12ST-AH 560 M M 1260~2772 13~63 300~600 77 3~10 5
RU RU 1152~2520 13~44 300~500 79 3~8
16/14ST-AH 560 M M 1368~3060 11~63 250~550 79 4~10 5
16/14TU-AH 1200
18/16ST-AH 560 M M 2160~5040 8~66 200~500 80 4.5~9 5
18/16TU-AH 1200
20/18TU-AH 1200 M M 2520~5400 13~57 200~400 85 5~10 5





























































































Tobee® AH Slurry Pump Component Diagram:

WAR MAN Slurry Pump Manufacturer China



Tobee® AH Slurry Pump Structural Drawing:

WAR MAN Slurry Pump Manufacturer China



Tobee® AH Slurry Pump Shaft Seal:

Packing seal:

As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller seal:

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical seal:

TH series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.


Tobee® AH Slurry Pump Drive Type

WAR MAN Slurry Pump Manufacturer China



Tobee® AH Slurry Pump Quality  Control:

Stages of manufacture Quality cotrol activities
Raw material arrival Sampling, material chemical analysis
Casting and composition Material material chemical analysis of pump parts
Casting quality inspection
Key component machining Dimension precision inspection
Impeller balancing
General assembly Procedure operaion
Hydraulic static test
Performance test of pump unit Capacity and head
Vibration and noise
Bearing temperature
Final inspection Packaging of pump unit
Documents
Spare parts and accessories











































Tobee® AH Slurry Pump After-sales Service:

As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.



Packing Transport Services

Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company  and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.

Installation Services

Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.

Technical Support Services

Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.



Tobee® AH Slurry Pump On-Site Application:

WAR MAN Slurry Pump Manufacturer China

1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.

2)Metallurgy:Transport various slurry for aluminium or steel manufacture.

3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.

4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.

5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.

6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.

7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.



Tobee® AH Slurry Pump Spare parts:

WAR MAN Slurry Pump Manufacturer China



FAQ:

1.Q:Are you a factory or trading company?

A:We are a big manufacturing pump factory with 30 years experience.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is The material of your pumps?

A: The materials can be selected by High chrome alloy or Rubber,Polyurethane,Cast iron,SS304,SS316,CD4MCu,Duplex SS,Bronze etc. We can also choose material as customers’ requirement.

4.Q:How can I get some samples?

A: We are honored to offer you samples.

5.Q:How does your factory do regarding quality control?

A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~20QC.
