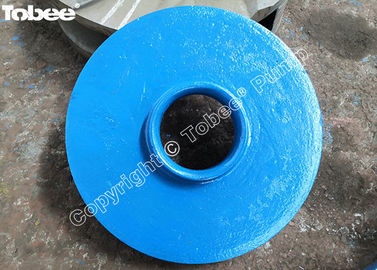

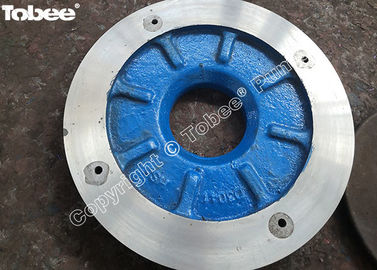

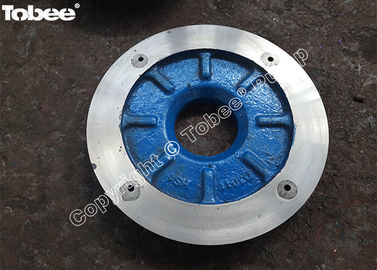

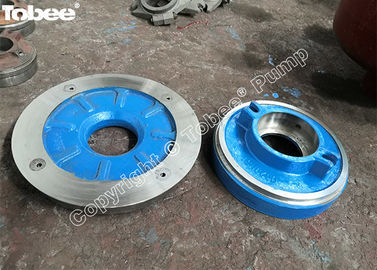

D3041HS1 Frame Plate Liner Insert

D3041HS1 Frame Plate Liner Insert is a wear part of slurry pumps, It is also called for slurry pump back liner based on locating position in slurry pump structure, Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers frame plate liner inserts are interchangeable with pump frame plate liner inserts with high chrome, natural rubber, polyurethane for different working condition.

D3041HS1 Frame Plate Liner Insert:

Pump model: AH, HH, L, M, SP, G/GH, AF
Parts no.: *041
Materials: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

D3041HS1 Frame Plate Liner Insert Component Diagram:

D3041HS1 Frame Plate Liner Insert Quality Control:

D3041HS1 Frame Plate Liner Insert After-sales Service:

As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.

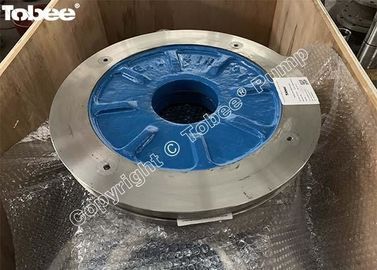

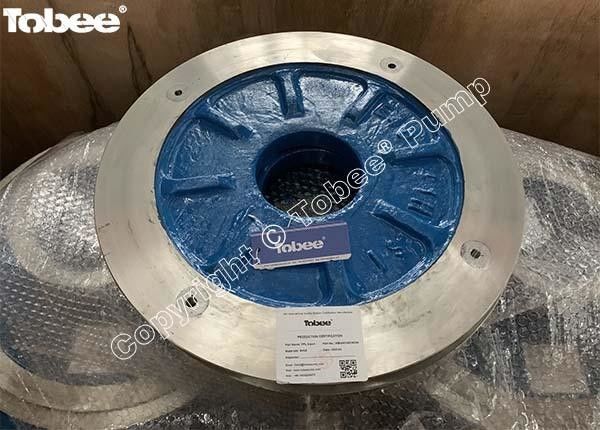

Packing Transport Services

Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company  and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.

Installation Services

Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.

Technical Support Services

Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.

D3041HS1 Frame Plate Liner Insert On-Site Application:

1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.

2)Metallurgy:Transport various slurry for aluminium or steel manufacture.

3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.

4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.

5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.

6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.

7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.

D3041HS1 Frame Plate Liner Insert Applications:

Tobee Slurry Pump Parts are widely used for AH/HH/L/M Horizontal slurry pumps, SPR Vertical rubber lined slurry pumps, Centrifugal horizontal slurry pumps, rubber lined slurry pumps, Chemical slurry pumps, Silica sand slurry pumps, Minerals processing slurry pumps, De-Watering Screen Pump, Ore sand pumps, Tailings Pump, Pipe-jacking slurry pumps, Ball mill discharge Pump, Tunnelling slurry pumps, Mixing tank slurry Pump, Wet crushers slurry pumps, SAG mill discharge pumps, Ball mill discharge pumps, Rod mill discharge slurry pumps, Ni acid slurry pumps, Coarse sand pumps, Coarse tailings pumps, Phosphate matrix slurry pumps, Scrubber slurry Pump, Minerals concentrate pumps, Heavy media slurry pumps, Dredging Sand slurry pumps, Bottom ash slurry pumps, Fly ash pumps, Lime grinding pumps, Screen feed Pump, Oil sands pumps, Mineral Sands pumps, Fine tailings pumps, Tailings booster Pump, Thickner Tailings Pump, Process recycle Pump, Pipeline transfer pumps, Phosphoric acid slurry pumps, Coal slurry pumps, Flotation pumps.
