|Theory:||Dredge Pump||Structure:||Single-stage Pump|
|Size:||1 Inch To 22 Inch Dredge Pumps||Materials:||High Chrome Alloy,Rubber,Polyurethane Etc|
|Standard Or Nonstandard:||Dredger Pump Wear Spares||Certificate:||ISO,CE,SGS,DNV|
|Application:||Mining,Coal,Metallurgy,Dredging,Power Plant,Sewage,Chemical Plant Etc|
Dredger Pumps Spare Parts namely the pump parts have direct connection with slurries, They are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed, The wetted parts include impeller, cover plate liner, frame plate liner, throatbush, frame plate liner insert etc, These wear parts are very crucial to the service life of slurry pumps, For the long service life of pump parts, the material plays an important role here, Tobee offers dredger pump parts are more suitable for delivering strong corrosive or abrasive slurries of small particle size without sharp edges.
Slurry Pumps Spare Parts Interchangeable parts:
√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc
√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66
√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50
√ Polyurethane materials code: U01, U05
√ Shaft material: 45#, 40CrMo, SS304, SS316
√ Shaft sleeve material: SS410, SS420 SS304, SS316
√ Lantern ring material: 304, 316, PTFE
√ Bearing housing/ bearing end cover material: G01, D21
√ Expeller, Expeller ring: A05
√ Packing: Q05
Dredger Pump Spare Parts Component Diagram:

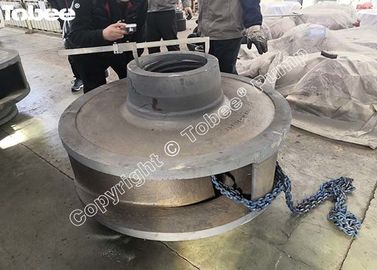

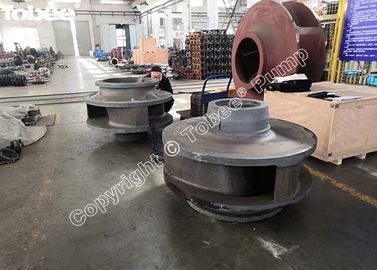

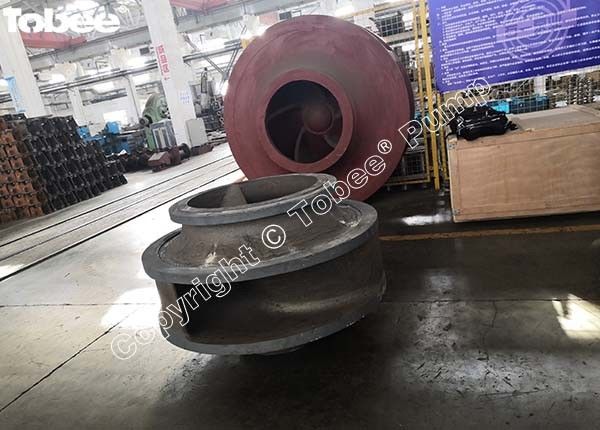

Dredger Pump Impeller Reference Photos:
Dredger Pump Impeller After-sales Service:
As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.
Packing Transport Services
Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.
Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.
Technical Support Services
Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.
Dredger Pump Impeller On-Site Application:
1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.
2)Metallurgy:Transport various slurry for aluminium or steel manufacture.
3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.
4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.
5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.
6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.
7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.
Tobee® Pumps Spare Parts Applications:
* Tobee® is a registered trademark and does not represent or is not in any way affiliated with ® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Pumps.
* Tobee® slurry pump spare parts are only interchangeable with ® slurry pump spare parts.
* This document is the property of Tobee® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
