Payment & Shipping Terms:
|Materials::||A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, U38 Etc||Seal Type::||Expeller Seal, Packing Seal, Mechanical Seal, Double Mechanical|
|Shaft Position From The Horizontal::||Horizontal Abrasive Slurry Pump||Warranty::||One Year|
|Application::||Mining,metallurgy, Power Plants, Sewage Water Treatment, Dredging,as Well As Petroleum Industry.||Model:||Horizontal AH Slurry Pumps|
|Type:||2/1.5B- AH Slurry Pump||Specification:||1.5 Inch Slurry Pumps|

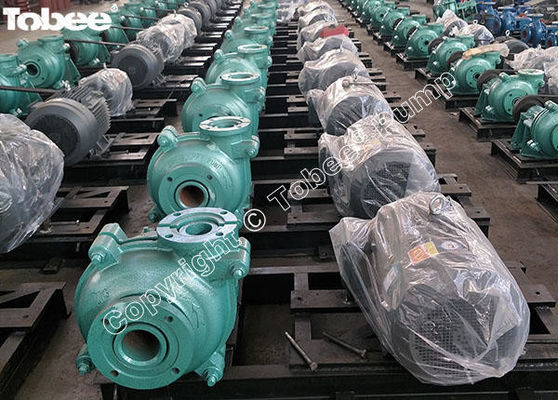

Tobee® 2/1.5 B- AH Open Impeller Slurry Pumps for Copper Mining is single-stage, single-suction, cantilevered, double casing, horizontal, centrifugal slurry pump and used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids. Tobee can offer a complete range of slurry pumps specially designed to handle light to severe slurry duty.
Size: 2" x 1.5"
Handling solids: 19mm
Materials: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01 U38 etc
1. Slurry Pump wet parts are made of wear-resistant high chromium alloy.
2. Slurry Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication. International famous bearing
3. The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
6. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.
Tobee® 2/1.5 B- AH Open Impeller Slurry Pumps for Copper Mining Performance Parameters:
Clear Water Performance
Tobee® 2/1.5 B- AH Open Impeller Slurry Pumps for Copper Mining Structural Design:
Tobee® 2/1.5 B- AH Open Impeller Slurry Pumps for Copper Mining On-site Applications:
Tobee® 2/1.5 B- AH Open Impeller Slurry Pumps for Copper Mining is designed for handling highly abrasive, high density slurries in metallurgy industry, mining industry, coal, power, chemical, building material and other industrial departments. The pumps of these models also can be installed as multi-stage series.
Accroding to different working condition, Tobee® slurry pumps can be use as minerals process pump, Booster sand pump, Dewatering Screen Pump, Tailings Pump, Metboom Pump, Feedprep Pump, Scavenger Feed Pump, Re-Cleaner Pump, Ball mill discharge Pump, Ruffer Feed Pump, Transfer to feedprep Pump, Metboom Return Pump, Thickner Underflow Pump, Thickner Tailings Pump, Thickner Underflow Pump, Rinse Pump, Dilute Pump, Re-Cleaner Pump, Rougher Feed Pump, Tailings booster Pump, Mill slurry Pump, Mill feed water Pump, Disc filter basin flushing Pump, Mixing tank slurry Pump, Gas cleaning slurry Pump, Windbox slurry Pump, Pellet hand scrubber slurry pump, Process recycle Pump, Scrubber slurry Pump, Prop pellets undersize Pump, Screen feeder Pump, Furn disch scrubber slurry Pump, Cosmetic recycle water Pump, Backwash Pump, Venturi scrubber slurry pump, Clarifier underflow pump, Pipeline transfer pump etc.
Reliable and comprehensive quality assurance system ensures the excellent quality of our products. We have got the “International Standard” certification, manufactured according to GB, Department of superscript, and industry standards, we implement a comprehensive quality management during the entire process of production, accordance with the process file processing strictly, and a variety of detection methods etc.
We have met the requirements of GB3216-89 national Class B accuracy, computer test data monitoring of water test pumping station application. There are physical chemistry laboratory, metallographic analysis room in our factory, for testing material properties in different respects.
1. Quality Policy
Advocates quality is the life of enterprise, assiduous, the pursuit of excellence
2. Quality objectives
qualified products rate 99%, factory qualified pass rate: 100%
3. Quality Commitment
1) We will continue to improve the awareness of quality, implementing as GB/T19001-2000 quality assurance model standard, meeting technical requirements stipulated in the contract. We are not only discharge for the supplier host, but also for the quality of spare parts, external assistance products etc.
2) We promise the delivery time stipulated in the contract.
