Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps

China Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps supplier
Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps supplier Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps supplier Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps supplier Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps supplier

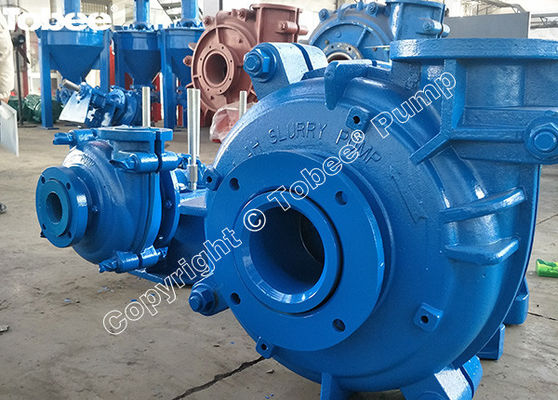

Large Image :  Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps

Product Details:

Place of Origin: China
Brand Name: TOBEE
Certification: ISO,CE,SGS,DNV
Model Number: 10x8FAH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 5800
Detailed Product Description
Size:: 10" X 8" Capacity:: 612-1368m3/h
Head:: 11-61m Speed:: 400-850rpm
NPSHr:: 4-10m Eff.:: 71%
Power:: Max.260kw Handling Solids:: 76mm
Materials:: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, U38 Etc Seal Type:: Expeller Seal, Packing Seal, Mechanical Seal, Double Mechanical
Shaft Position From The Horizontal:: 10x8F-AH Slurry Pump Warranty:: One Year
Application:: Mining,metallurgy, Power Plants, Sewage Water Treatment, Dredging,as Well As Petroleum Industry. Model: 10/8 F AH Slurry Pump
Type: 10x8 Slurry Pump Specification: 8inch Slurry Pump

Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pump is a kind of horizontal centrifugal slurry pump for heavy duties application. It is suitable a range of transporting Solid-liquids mixture with solid suspending (like gypsum, lime, limestone, ore, sand, gravel, ash etc.) or strongly abrasive and corrosive slurriesw with high concentration slurry. The 10x8 sludge slurry pump are used perfect impeller structure ensure satisfactory performance with long life and needs minimum maintenance requirements.



Specification:



Size: 10" x 8"
Capacity: 612-1368m3/h
Head: 11-61m
Speed: 400-850rpm
NPSHr: 4-10m
Eff.: 71%
Power: Max. 260kw
Handling solids: 76mm
Materials: Hyper chrome alloy, Rubber, Polyurethane, Ceramic etc



Product Features:



1. Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
2. Ductile iron fully lined casing provides durability, strength, safety, and long service life.
3. Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
4. Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs.
5. Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life.
6. Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
7. Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life.
8. Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
9. Optional dry running shaft seal reduces or eliminates flush water requirements.
10. Effective expeller prolongs packing life while reducing or eliminating flush water requirement.
11. Now featuring throatbush and impeller combination designed to enhance efficiency and improve wear performance.
12. Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized pump.



Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps Performance Parameters:



Model


Max. Power

(kw)

Material

Clear Water Performance

Impeller

Vane No.

Liner Impeller

Capcacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

10/8F-AH 260 Metal Metal 612~1368 11~61 400~850 71 4~10 5



Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps Structural Design:





Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps



Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps On-site Applications:



Tobee® 10/8 FAH Corrosive Resistance Sludge Slurry Pumps



Typical:



Mining & Mineral Processing
The slow running speeds of the Tobee TH Heavy Duty Slurry Pump, together with the comprehensive choice of abrasion resistant alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.



Chemical Process
The interchangeability of alloy and elastomer components in the same pump casing, together with a wide range of mechanical seals, make the Tobee TH Heavy Duty Slurry Pump the most flexible choice for the chemical plant environment.



Sand & Gravel
Designed for easy and simple strip down and re-assembly, the Tobee TH Heavy Duty Slurry Pump minimises downtime, making it the ideal choice where installed stand by pumps are not available.



Sugar Processing
The premium reliability and service life of the Tobee TH Heavy Duty Slurry Pump is specified by many sugar plant engineers worldwide where uninterrupted pump operation during the sugar campaign is a critical requirement.



Flue Gas Desulphurisation
The new generation of specially formulated abrasion and corrosion resistant alloys, together with the very latest elastomer technology, positions Tobee Pumps firmly as a major supplier of pumps to the FGD industry.



Oil & Gas Exploration
Over a number of years we have developed the proven design of the Tobee TH Heavy Duty Slurry Pump ranges to suit the specific demands of offshore applications. We can now offer the most reliable top side solution to erosive wear.



Industrial Applications
Wherever abrasive solids are causing premature failure of pumps, the Tobee TH Heavy Duty Slurry Pump range has the right combination of performance, wear life and reliability to bring the customer the lowest cost of ownership.
