Product Details:
Payment & Shipping Terms:
|
| Size:: | 14" X 12" | Capacity:: | 1152-2772m3/h |
|---|---|---|---|
| Head:: | 13-63m | Speed:: | 300-600rpm |
| NPSHr:: | 3-10m | Eff.:: | 77% |
| Power:: | Max.560kw | Handling Solids:: | 90mm |
| Materials:: | A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, U38 Etc | Seal Type:: | Expeller Seal, Packing Seal, Mechanical Seal, Double Mechanical |
| Shaft Position From The Horizontal:: | Horizontal Slurry Pump | Warranty:: | One Year |
| Application:: | Mining,metallurgy, Power Plants, Sewage Water Treatment, Dredging,as Well As Petroleum Industry. |

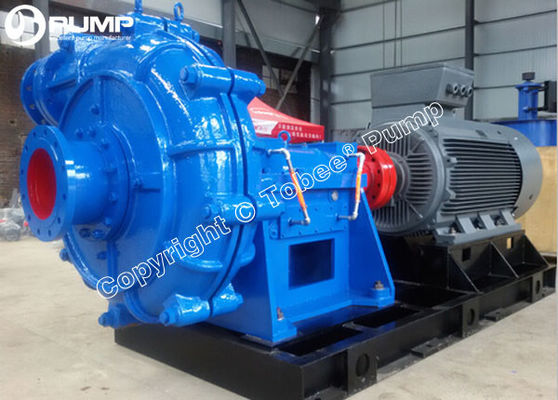

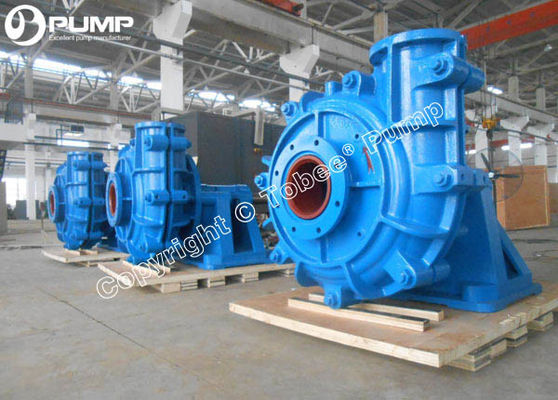

Tobee® 14X12ST-AH Grease Lubrication Slurry Pump is specially engineered for transporting high aggressive, viscous and abrasive slurries or large size particles in construction, mining, chemical and industrial applications. 10x8ST - AH Slurry pump parts material can be done by Tobee Pump in high chrome, rubber, polyurethane, Ceramic and others to match working conditions.
Specification:
Size: 12" x 10"
Capacity: 936-1980m3/h
Head: 7-68m
Speed: 300-800rpm
NPSHr: 2.5-7.5m
Eff.: 82%
Power: Max. 560kw
Handling solids: 86mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: A05, A07, A33, A49, A51, A61, R08, R2
Product Features:
1. Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
2. Ductile iron fully lined casing provides durability, strength, safety, and long service life.
3. Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
4. Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs.
5. Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life.
6. Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
7. Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life.
8. Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
9. Optional dry running shaft seal reduces or eliminates flush water requirements.
10. Effective expeller prolongs packing life while reducing or eliminating flush water requirement.
11. Now featuring throatbush and impeller combination designed to enhance efficiency and improve wear performance.
12. Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized pump.
Tobee® 14X12ST-AH Grease Lubrication Slurry Pump Performance Parameters:
| Model |
Max. Power (kw) |
Material |
Clear Water Performance |
Impeller Vane No. |
|||||
| Liner | Impeller |
Capcacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
| 14/12ST-AH | 560 | Metal | Metal | 1260~2772 | 13~63 | 300~600 | 77 | 3~10 | 5 |
Tobee® 14X12ST-AH Grease Lubrication Slurry Pump Structural Design:
Tobee® 14X12ST-AH Grease Lubrication Slurry Pump On-site Applications:
1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.
2)Metallurgy:Transport various slurry for aluminium or steel manufacture.
3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.
4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.
5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.
6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.
7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.
Tobee® 14X12ST-AH Grease Lubrication Slurry Pump Dimensional Drawing:
