Product Details:
Payment & Shipping Terms:
|
| Size:: | 3"x2" | Capacity:: | 39.6-86.4m3/h |
|---|---|---|---|
| Head:: | 12-64m | Speed:: | 1300-2700rpm |
| NPSHr:: | 4-6m | Eff.:: | 55% |
| Power:: | Max.30kw | Handling Solids:: | 25mm |
| Materials:: | A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, U38 Etc | Seal Type:: | Expeller Seal, Packing Seal, Mechanical Seal, Double Mechanical |
| Shaft Position From The Horizontal:: | Centrifugal Salt Slurry Pump | Warranty:: | One Year |
| Application:: | Mining,metallurgy, Power Plants, Sewage Water Treatment, Dredging,as Well As Petroleum Industry. |

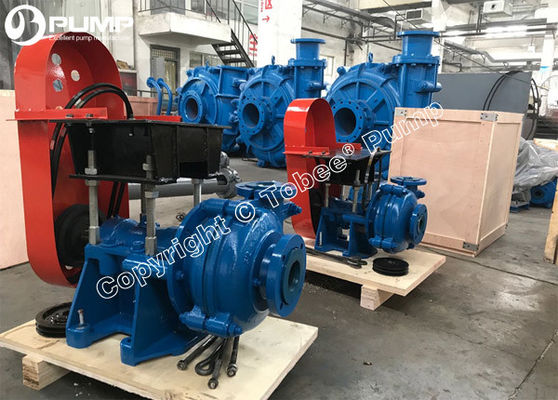

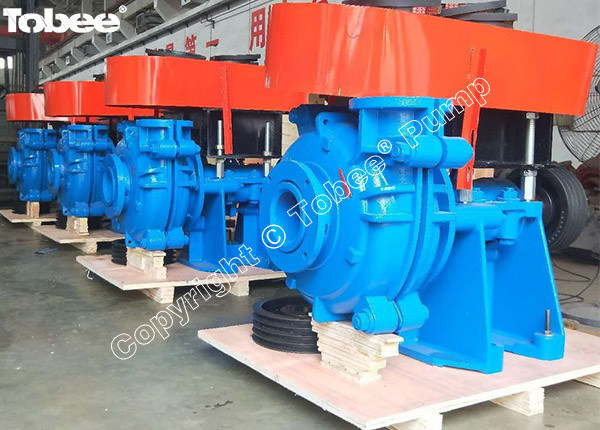

Tobee® 3x2C-AH Centrifugal Salt Slurry Pump is non-clog pump designed for high solids industrial pumping applications. The material of liner and impeller adopts wear-resistant metal or rubber, discharge branch can be positioned at 8 different positions at intervals of 45 degrees, the pumps may be installed in multistage design, may be driven by belt or direct coupling. 3x2C-AH slurry pump is widely used in mining/coal mining, hydraulic fracking, mineral processing, steel production, drilling mud, slurry transport, sand and gravel, lime slurry or fly ash.
Specification:
Size: 3" x 2"
Capacity: 39.6-86.4m3/h
Head: 12-64m
Speed: 1300-2700rpm
NPSHr: 4-6m
Eff.: 55%
Power: Max.30kw
Handling solids: 25mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Product Features:
• Double casings design, wide passage for solids.
• Bearing assembly & frame: Both standard & high capacity typies available.
• A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy duty roller bearing are housed in a removable bearing cartridge.
• Pump body is fastened with the frame by minimum bolts. Impeller adjustment is provided in a convenient position below the bearing assembly.
• Impeller & liner material: high chrome alloy, rubber and polyurethane etc.
• High efficiency impeller available: up to 86.5% for certain type.
• Interchangeable wet parts material: High chrome alloy metal: PH: 5-12, natural rubber: PH: 4-12.
• Shaft seal: Packing seal, centrifugal seal, mechanical seal.
• Discharge branch: 8 positions in each 45°.
• Driving type: V-belt, flexible coupling, gearbox, hydraulic coupler.
Tobee® 3x2C-AH Centrifugal Salt Slurry Pump Performance Parameters:
| Model |
Max. Power (kw) |
Material |
Clear Water Performance |
Impeller Vane No. |
|||||
| Liner | Impeller |
Capcacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
| 3/2C-AH | 30 | Metal | Metal | 39.6~86.4 | 12~64 | 1300~2700 | 55 | 4~6 | 5 |
Tobee® 3x2C-AH Centrifugal Salt Slurry Pump Structural Design:
Tobee® 3x2C-AH Centrifugal Salt Slurry Pump On-site Applications:
| Wet crushers | Ni acid slurry | Minerals concentrate | Oil sands | Coal | Pulp and paper |
| SAG mill discharge | Coarse sand | Heavy media | Mineral sands | Flotation | FGD |
| Ball mill discharge | Coarse tailings | Dredging | Fine tailings | Sugar beets | Waste water |
| Rod mill discharge | Phosphate matrix | Bottom/fly ash, lime grinding | Phosphoric acid | Process chemical | Aluminum oxide |
QA&QC
Reliable and comprehensive quality assurance system ensures the excellent quality of our products. We have got the “International Standard” certification, manufactured according to GB, Department of superscript, and industry standards, we implement a comprehensive quality management during the entire process of production, accordance with the process file processing strictly, and a variety of detection methods etc.
We have met the requirements of GB3216-89 national Class B accuracy, computer test data monitoring of water test pumping station application. There are physical chemistry laboratory, metallographic analysis room in our factory, for testing material properties in different respects.
1. Quality Policy
Advocates quality is the life of enterprise, assiduous, the pursuit of excellence
2. Quality objectives
qualified products rate 99%, factory qualified pass rate: 100%
3. Quality Commitment
1) We will continue to improve the awareness of quality, implementing as GB/T19001-2000 quality assurance model standard, meeting technical requirements stipulated in the contract. We are not only discharge for the supplier host, but also for the quality of spare parts, external assistance products etc.
2) We promise the delivery time stipulated in the contract.
