Tobee® 1.5x1 B- AH Metal Lined Slurry Pump

Good quality Vertical Slurry Pump for sales
Good quality Vertical Slurry Pump for sales
I'm Online Chat Now

Tobee® 1.5x1 B- AH Metal Lined Slurry Pump

China Tobee®  1.5x1 B- AH Metal Lined Slurry Pump supplier
Tobee®  1.5x1 B- AH Metal Lined Slurry Pump supplier Tobee®  1.5x1 B- AH Metal Lined Slurry Pump supplier Tobee®  1.5x1 B- AH Metal Lined Slurry Pump supplier

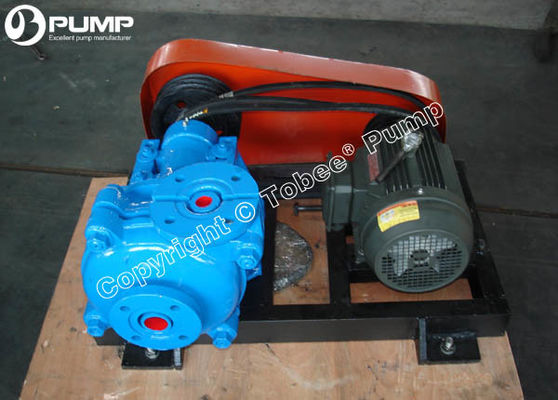

Large Image :  Tobee® 1.5x1 B- AH Metal Lined Slurry Pump

Product Details:

Place of Origin: China
Brand Name: TOBEE
Certification: ISO,CE,SGS,DNV
Model Number: 1.5x1 B- AH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 5800
Contact Now
Detailed Product Description
Size:: 1.5" X 1" Capacity:: 12.6-28.8m3/h
Head:: 6-68m Speed:: 1200-3800rpm
NPSHr:: 2-4m Eff.:: 40%
Power:: Max.15kw Handling Solids:: 14mm
Materials:: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, U38 Etc Seal Type:: Expeller Seal, Packing Seal, Mechanical Seal, Double Mechanical
Shaft Position From The Horizontal:: Horizontal Mining Slurry Pump Warranty:: One Year
Application:: Mining,metallurgy, Power Plants, Sewage Water Treatment, Dredging,as Well As Petroleum Industry.

Tobee® 1.5x1 B- AH Metal Lined Slurry Pumps are single stage single suction cantilever horizontal centrifugal small slurry pump, suitable for metallurgical, mining, coal, electric power building materials and other industrial sectors totransport liquid containing suspended solid particles applications. With large shaft diameters, heavy duty bearing assemblies and robust slurry pumping capacity, Application customization comes standard with this line by applying a wide variety of metallic and elastomeric parts options, an assortment of seal arrangements, and a standard impeller adjustment mechanism incorporated into every base assembly.

Specification:

Size: 1.5" x 1"
Capacity: 12.6-28.8m3/h
Head: 6-68m
Speed: 1200-3800rpm
NPSHr: 2-4m
Eff.: 40%
Power: Max.15kw
Handling solids: 14mm
Materials: A05, A07, A33, A49, A51, A61, R08, R26, R55, U01, U38 etc

Product Features:
1. Slurry Pump wet parts are made of wear-resistant high chromium alloy.

2. Slurry Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing            assembly use grease lubrication. International famous bearing
3. The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.

4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.

5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

6. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.



Model


Max. Power

(kw)

Material

Clear Water Performance

Impeller

Vane No.

Liner Impeller

Capcacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

1.5/1B-AH 15 Metal Metal 12.6~28.8 6~68 1200~3800 40 2~4 5



Tobee® 1.5x1B - AH Slurry Pump Structural Drawing:





Tobee®  1.5x1 B- AH Metal Lined Slurry Pump



Tobee® 1.5x1B - AH Slurry Pump On-site Applications:



Tobee®  1.5x1 B- AH Metal Lined Slurry Pump



Tobee® 1.5x1 B- AH Metal Lined Slurry Pumps are designed for handling highly abrasive, high density slurries in metallurgy industry, mining industry, coal, power, chemical, building material and other industrial departments. The pumps of these models also can be installed as multi-stage series.



Tobee®  1.5x1 B- AH Metal Lined Slurry Pump
