Tobee™ Pump TX Self Priming Pump is a kind of energy saving pump developed by us after studying relevant technical data both at home and abroad and also making improvement.This is a kind of self priming centrifugal pump,featured by a compacted structure,easy and stable operation,high efficiency,long life,strong self priming capacity etc.The foot valve is unnecessary for the pipeline,Just make sure there is quantitative conduction liquid in the pump body before the operation.Therefore,It simplifies the pipeline system and improves the working condition.
Size (discharge): 25mm to 450mm
Capacity: 3.4~ 1200 m3/hr
Suction lift: Max. 6.5m
Head: 6m ~ 135 m
Efficiency:Up to 92%
Materials:Cast iron,SS 304,SS 316,CD4MCu,Duplex SS,Bronze etc

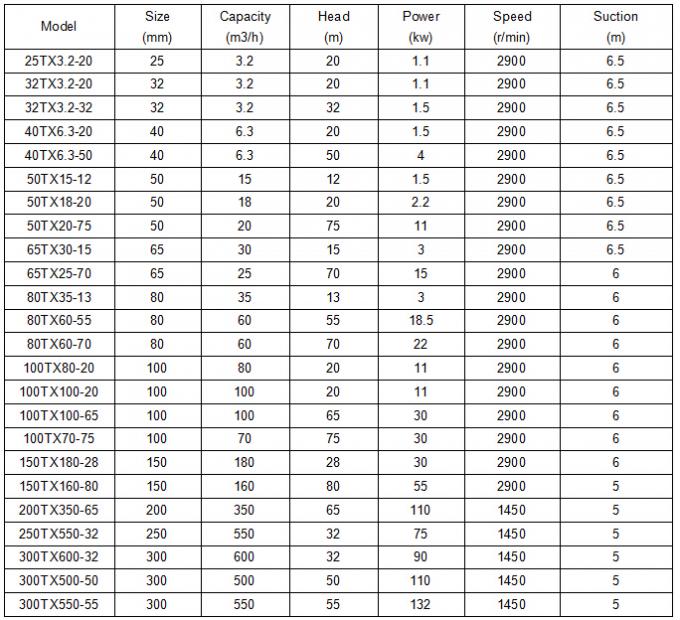

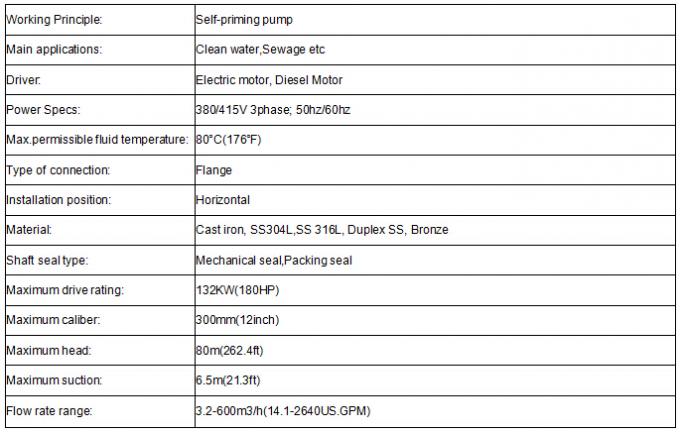

Tobee™ TX Self Priming Pump Performance Parameter:
Tobee™ TX Self Priming Pump Component Diagram:

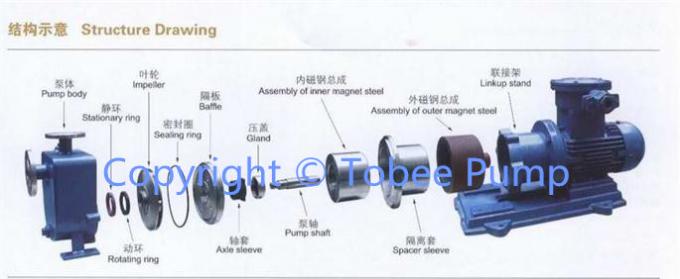

Tobee™ TX Self Priming Pump Structural Drawing:

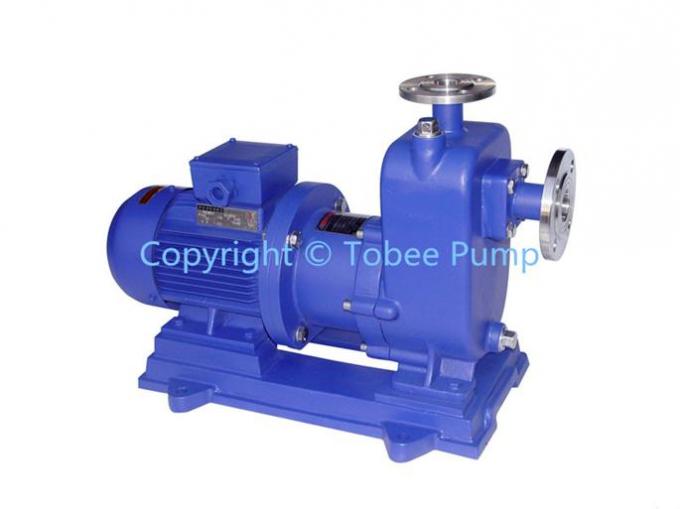

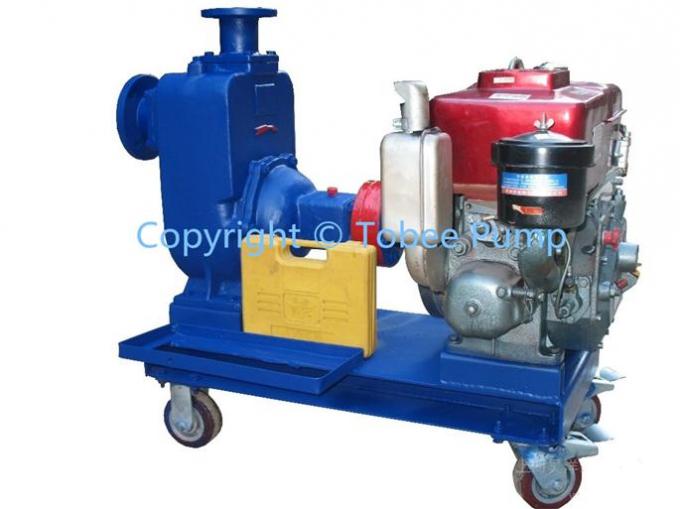

Tobee™ TX Self Priming Pump Display:
Tobee™ TX Self Priming Pump Quality Control:
Tobee™ TX Self Priming Pump After-sales Service:
As the pump wetted parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.
Packing Transport Services
Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.
Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.
Technical Support Services
Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.
Tobee™ TX Self Priming Pump On-Site Application:
1. Suitable for city environmental protection ,construction,fire fighting, chemical industry, pharmacy, dyes, dyeing,brewing, electric power, electric plating, paper making, industrial and mineral rinse, equipment cooling and so on.
2. This pump, when mounted with a shaking arm shower, can have the water burst into air and then scattered in a thin drop for spraying, useful to a farm, nursery, orchard and tee plantation.
3. Suitable for pure water, sea water, the chemical media of an acid and alkaline degree and the pulpy material of a general pasty state. (medium viscosity<=100cP, solid content below 30%).
4. This pump can work together with a pressure filter of any model and specification and is the most ideal matching pump to send pulpy materials to the said filter for pressure filtering.
Tobee™ TX Self Priming Pump Spare parts:
1.Q:Are you a factory or trading company?
A:We are a big manufacturing pump factory with 30 years experience.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is The material of your pumps?
A: The materials can be selected by High chrome alloy or Rubber,Polyurethane,Cast iron,SS304,SS316,CD4MCu,Duplex SS,Bronze etc. We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~20QC.
