| Port Size: | 50 ~600mm | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Pressure: | Low Pressure | Power: | Manual |
| Temperature Of Media: | Medium Temperature | Media: | Water |
| Structure: | Gate | Material: | Grey Iron,ductile Iron |

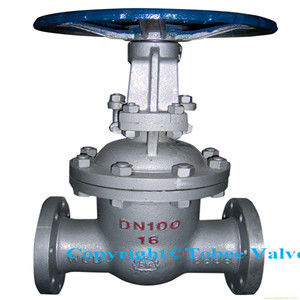

Specification For Kinds of Gate Valves From China
| Main parts and materials | |||||
| Parts name | Material | ||||
| Valve body,Bonnet | Grey iron Ductile iron | ||||
| Disc | Grey iron Ductile iron | ||||
| Stem | Carton steel, Brass, Stainless steel | ||||
| Yoke nut | Brass ,Ductile iron | ||||
| Function and specification | |||||
| Type | PN(Mpa) | Testing pressure(Mpa) | Suitable temperature | Suitable medium | |
| Strength | Enclose | ||||
| Z941H-10 | 1.0 | 1.5 | 1.1 | ≤200°C | Water,Vapour,Oil |
| Z941T-10 | Water,Vapour | ||||
| Z941W-10 | ≤100°C | Oil | |||
