Tobee® Medium consistency centrifugal pumps for Paper and Pulp Industry

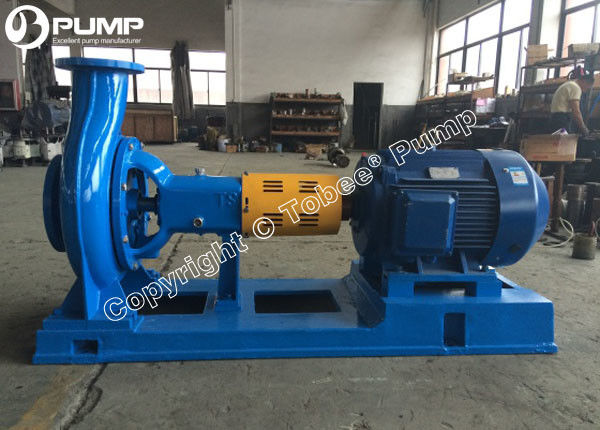

Large Image : Tobee® Medium consistency centrifugal pumps for Paper and Pulp Industry

Product Details:

Place of Origin:	Hebei
Brand Name:	TOBEE PUMP
Certification:	ISO,CE,SGS
Model Number:	TXL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden case
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	5800

Contact Now

Detailed Product Description

Size:	1~16inch Pump	Capacity:	30~2300m3/h
Head::	3~58m	Materials:	Cast Iron,SS304,SS316L,Duplex Stainless Steel Etc
Seal Type:	Expeller Seal, Packing Seal, Mechanical Seal	Impeller Suction Way:	End Suction Pulp Pump
Shaft Position From The Horizontal:	Horizontal Pulp Pump	Warranty:	One Year
Certificate:	ISO,CE,SGS,DNV	Application:	Paper Making Industry ,water Treatment Industry ,sugar-making Industry,starch Industry,soda Reuse Industry Etc
Model:	Non-clog Stock Pumps

Tobee^® Medium consistency centrifugal pumps for Paper and Pulp Industry is one kind centrifugal single stage single suction paper pulp and chemicals sewage,paper pulp pump .it is widely used in such as paper making industry ,water treatment industry ,sugar-making industry,starch industry,soda reuse industry .it can transport less than 6% concentration sewage water or fine slurrys from paper -making industry ,sugar -making and starch industry etc.,and it can also transport the non-abrasion medium in other industries.

Specification:

Size (discharge): 1" to16" Pump
Capacity: 30~ 2300 m3/hr
Head: 3m ~ 58 m
Handing solids: 0 ~ 650mm
Concentration: 0%~ 6%
Material:Cast iron,SS304,SS316L,Duplex stainless steel etc

Detailed specification:

1. High efficiency, Energy saving: operation efficiency is 3-10% higher than ordinary pulp pump, energy saving to 15-30%
2. Good NPSH, Long service: actual using life is twice-third time than ordinary pulp pump.
3. High concentrations, Non-clogging: transfer pulp concentration max to 6%.
4. Reasonable structure, Easy maintenance: Pump head is front, rear casing structure, when maintenance there is no need to remove pipe line, only remove the electric motor backwards, then could disassemble and repair the pump.

Tobee^® Medium consistency centrifugal pumps for Paper and Pulp Industry Performance Parameter:

Category	No.	Model	Performance parameter		Suction (m)	Speed n(r/min)	Efficiency (%)	Matching motor	Concentration (%)	Imp dia. (mm)
Category	No.	Model	Capacity Q(m³/h)	Head H(m)	Suction (m)	Speed n(r/min)	Efficiency (%)	Matching motor	Concentration (%)	Imp dia. (mm)
A	1	80TXL-50-6	30-60	7-5	2.5	1420	68	Y100L₁-2.2	4-6	156
B	1	80TXL-60-12	35-70	14-12	2.5	1440	62	Y112M-4	4-6	210
B	2	80TXL-65-15	40-80	16-14	2.5	1440	62	Y132S-5.5	4-6	225
C	1	80TXL-50-20	30-60	23-21	6	1440	60	Y132S-5.5	4-6	258
C	2	80TXL-55-25	35-70	26-24	6	1440	60	Y132M-7.5	4-6	285
D	1	80TXL-60-35	35-70	37-33	6	1460	60	Y160M-11	4-6	323
	2	80TXL-70-40	40-80	41-37	6	1460	60	Y160L-15	4-6	340
	3	80TXL-80-45	55-100	44-40	6	1460	60	Y180M-18.5	4-6	353
E	1	100TXL-90-18	55-110	19-17	6	1440	70	Y132M-7.5	4-6	242
E	2	100TXL-110-20	65-130	23-21	6	1460	72	Y160M-11	4-6	258
F	1	100TXL-80-20	50-100	21-19	6	1440	68	Y132M-7.5	4-6	258
F	2	100TXL-80-25	50-100	29-25	6	1460	68	Y160M-11	4-6	285
G	1	100TXL-70-30	40-80	32-28	6	1460	60	Y160M-11	4-6	293
	2	100TXL-80-35	50-100	37-33	6	1460	60	Y160L-15	4-6	320
	3	100TXL-90-40	55-110	43-37	6	1470	60	Y180M-18.5	4-6	340
H	1	100TXL-150-16	90-180	19-17	6	970	68	Y180L-15	4-6	258
	2	100TXL-160-30	95-190	32-28	6	1470	68	Y180L-22	4-6	310
	3	100TXL-180-35	110-220	37-32	6	1470	68	Y200L-30	4-6	330
	4	100TXL-200-40	120-240	43-37	6	1480	68	Y225S-37	4-6	350
	5	100TXL-130-11	80-160	12-9	6	970	65	Y160M-7.5	4-6	300
K	1	100TXL-100-22	60-120	23-21	6	970	60	Y160M-11	4-6	385
	2	100TXL-130-45	80-160	49-43	6	1470	60	Y200L-30	4-6	365
	3	100TXL-140-50	85-170	55-48	6	1480	60	Y225S-37	4-6	390
	4	100TXL-200-55	120-240	58-51	6	1480	60	Y250M-55	4-6	399
M	1	150TXL-160-15	95-190	15-12	6	970	75	Y160L-11	4-6	320
	2	150TXL-200-25	120-240	25.5-22.5	6	1470	75	Y180L-22	4-6	290
	3	150TXL-220-30	130-260	32-28	6	1470	75	Y200L-30	4-6	310
	4	150TXL-200-20	120-240	21.5-18.5	6	1470	75	Y180M-18.5	4-6	275
	5	150TXL-300-25	180-360	26.5-23	6	1470	75	Y200L-30	4-6	310
N	1	150TXL-200-14	120-240	13-11	5	970	70	Y160L-11	4-6	318
	2	150TXL-240-14	145-290	14-11	5	970	70	Y180L-15	4-6	323
	3	150TXL-210-16	125-250	15-13	5	970	70	Y180L-15	4-6	340
	4	150TXL-260-16	155-310	15-13	5	970	70	Y200L₁-18.5	4-6	340
	5	150TXL-300-30	180-360	29.5-26	5	1480	72	Y225S-37	4-6	318
	6	150TXL-370-30	220-440	29.5-26	5	1480	72	Y225M-45	4-6	323
	7	150TXL-320-35	190-380	36-32	5	1480	72	Y225M-45	4-6	340
	8	150TXL-400-35	240-480	34-29	5	1480	72	Y250M-55	4-6	340
P	1	125TXL-130-38	80-160	40-35.5	6	1470	68	Y180L-22	4-6	340
	2	125TXL-120-32	70-140	34-29	6	1470	68	Y180M-18.5	4-6	310
	3	125TXL-90-17	55-110	18-15.5	6	970	68	Y160M-7.5	4-6	340
R	1	150TXL-300-15	180-360	16-14	5	970	75	Y200L₁-18.5	4-6	350
	2	150TXL-280-12	170-340	13-11	5	970	75	Y180L-15	4-6	315
	3	150TXL-430-32	260-520	34-29	5	1480	75	Y250M-55	4-6	340
	4	150TXL-400-28	240-480	30-25	5	1480	75	Y225M-45	4-6	315
	5	150TXL-340-25	210-430	27-20	5	1480	75	Y225S-37	4-6	300
	6	150TXL-360-36	215-430	39-32	5	1480	75	Y250M-55	4-6	350
Q	1	150TXL-370-14	220-440	15-13	5	970	77	Y200L₂-22	4-6	350
	2	150TXL-350-12	210-420	13-11	5	970	77	Y200L₁-18.5	4-6	335
	3	150TXL-570-34	340-680	35-30	5	1480	77	Y280S-75	4-6	350
	4	150TXL-500-27	310-620	28-24	5	1480	77	Y250M-55	4-6	316
S	1	250TXL-800-25	480-960	26.5-23	5	1480	76	Y280M-90	4-6	330
S	2	250TXL-500-10	300-600	11-9	5	970	76	Y200L₂-22	4-6	320
T	1	200TXL-500-43	300-600	44-40	5	1480	75	Y280M-90	4-6	384
T	2	200TXL-460-37	280-550	39-34	5	1480	72	Y280S-75	4-6	356
U	1	200TXL-600-14	360-720	15-12	5	1480	76	Y225S-37	4-6	260
U	2	200TXL-400-6	240-480	7-5	5	970	76	Y160L-11	4-6	260
V	1	200TXL-250-5	150-300	6-4	5	970	76	Y132M₂-5.5	4-6	233
W	1	150TXL-130-5	80-160	6-4	5	970	76	Y132S-3	4-6	228
YA	1	250TXL-1000-32	700-1150	34-28	1.5	1480	75	Y315M-132	4-6	353
	2	250TXL-935-28	655-1080	30-24	1.5	1480	75	Y315S-110	4-6	330
	3	250TXL-660-14	460-760	15-10	1.5	980	75	Y280S-45	4-6	353
	4	250TXL-620-12	435-715	13-8	1.5	980	75	Y250M-37	4-6	330
YB	1	250TXL-1000-50	700-1150	52-48	1.5	1480	78	Y355M₁-220	4-6	426
	2	250TXL-950-45	665-1100	47-42	1.5	1480	78	Y315L₂-185	4-6	405
	3	250TXL-900-40	630-1035	42-38	1.5	1480	78	Y315L₁-160	4-6	384
	4	250TXL-850-36	600-980	38-33	1.5	1480	78	Y315M-132	4-6	362
	5	250TXL-660-22	460-760	24-20	1.5	980	78	Y315S-75	4-6	426
	6	250TXL-630-20	440-730	21-17	1.5	980	78	Y280M-55	4-6	405
	7	250TXL-600-18	420-690	19-15	1.5	980	78	Y280S-45	4-6	384
YC	1	300TXL-1300-32	910-1500	34-30	1.5	1480	78	Y315L₂-185	4-6	370
	2	300TXL-1200-29	840-1380	31-27	1.5	1480	78	Y315L₁-160	4-6	350
	3	300TXL-1150-26	800-1320	28-24	1.5	1480	78	Y315M-132	4-6	335
	4	300TXL-860-14	600-990	15-12	1.5	980	78	Y280M-55	4-6	370
	5	300TXL-820-13	575-940	14-11	1.5	980	78	Y280S-45	4-6	350
	6	300TXL-780-11	545-900	12-9	1.5	980	78	Y250M-37	4-6	335
YD	1	300TXL-1300-50	910-1500	52-48	1.5	1480	76	Y355L₁-280	4-6	424
	2	300TXL-1200-42	840-1380	44-40	1.5	1480	76	Y355M₁-220	4-6	400
	3	300TXL-1100-36	770-1270	38-33	1.5	1480	76	Y315L₁-185	4-6	370
	4	300TXL-860-22	600-990	24-20	1.5	980	76	Y315M-90	4-6	424
	5	300TXL-800-18	560-920	19-16	1.5	980	76	Y315S-74	4-6	400
	6	300TXL-730-16	510-840	17-14	1.5	980	76	Y280M-55	4-6	370
YE	1	350TXL-1600-32	1120-1840	34-30	3.5	980	79	Y355L₁-220	4-6	528
	2	350TXL-1500-28	1050-1725	30-26	3.5	980	79	Y355M₂-185	4-6	495
	3	350TXL-1400-25	980-1610	27-23	3.5	980	79	Y355M₁-160	4-6	467
	4	350TXL-1200-18	840-1380	20-16	3.5	740	79	Y315L₂-110	4-6	528
YF	1	400TXL-2000-32	1400-2300	34-30	2.5	980	80	JS₂-400M₃-280	4-6	538
	2	400TXL-1840-27	1290-2110	29-25	2.5	980	80	Y355L₁-220	4-6	495
	3	400TXL-1740-24	1220-2000	26-22	2.5	980	80	Y355M₂-185	4-6	466
	4	400TXL-1510-18	1060-1740	20-16	2.5	740	80	Y355M₂-132	4-6	538
YG	1	200TXL-500-70	300-600	73-66	5	1480	72	Y315L₁-160	4-6	487
	2	200TXL-460-60	276-552	62-56	5	1480	72	Y315M-132	4-6	450
	3	200TXL-425-50	255-510	53-46	5	1480	70	Y315S-110	4-6	412

Tobee^® Medium consistency centrifugal pumps for Paper and Pulp Industry Structural Drawing:

Tobee® Medium consistency centrifugal pumps for Paper and Pulp Industry

1.Front pump cover	2.handhole cover	3.Impeller	4. Pump casing	5. Pump cover
6. Shaft cover	7. Packing gland	8. Slinger ring	9. Front bearing cover	10. Shaft
11. Breathable cover	12. Oil flag	13. Bearing frame	14. Back bearing cover	15. Support base
16. Coupling on pump end	17. Coupling for motor end	18.Base plate	19. Electric motor	20. Couplingguard

Tobee^® Medium consistency centrifugal pumps for Paper and Pulp Industry Quality Control:

Stages of manufacture	Quality cotrol activities
Raw material arrival	Sampling, material chemical analysis
Casting and composition	Material material chemical analysis of pump parts
Casting and composition	Casting quality inspection
Key component machining	Dimension precision inspection
Key component machining	Impeller balancing
General assembly	Procedure operaion
General assembly	Hydraulic static test
Performance test of pump unit	Capacity and head
	Vibration and noise
	Bearing temperature
Final inspection	Packaging of pump unit
	Documents
	Spare parts and accessories

Tobee^® Medium consistency centrifugal pumps for Paper and Pulp Industry After-sales Service:

As the pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.

Packing Transport Services

Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.

Installation Services

Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.

Technical Support Services

Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.

Tobee^® Medium consistency centrifugal pumps for Paper and Pulp Industry On-Site Application:

1. Paper-making industry: used to transport ≤6% pulp and the liquid loop transmission,

Lifting and pressure in alkali recovery industry.

2. Sugar industry: used to transport ≤4%, density ≤150mm2/s syrup.

3. Urban sewage industry:used in sewage treatment process of cycle conveying,

lifting and pressure, chemical raw materials.

4. Industry sewage, environmental protection project, municipal engineering.

Tobee^® Medium consistency centrifugal pumps for Paper and Pulp Industry Spare parts:

FAQ:

1.Q:Are you a factory or trading company?

A:We are a big manufacturing pump factory with 30 years experience.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is The material of your pumps?

A: The materials can be selected by High chrome alloy or Rubber,Polyurethane,Cast iron,SS304,SS316,CD4MCu,Duplex SS,Bronze etc. We can also choose material as customers’ requirement.

4.Q:How can I get some samples?

A: We are honored to offer you samples.

5.Q:How does your factory do regarding quality control?

A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~20QC.
