| Size: | 4" To 18" | Name: | Sand Gravel Pump Manufacturers |
|---|---|---|---|
| Model: | China Gravel Sand Pump | Type: | Gravel Sand Pump |
| Capacity: | 36-4320m3/h | Head: | 5m-80 M |
| Speed: | 600-1400rpm | NPSHr: | 2-5.5m |
| Handling Solids: | 0-260mm | Concentration: | 0-70% |
| Seal Arrangements: | Packing Seal, Expeller Seal, Mechanical Seal | No. Of Vanes: | 2~5 Vanes |
| Impeller Suction Way: | End Suction Gravel Pump | Shaft Position From The Horizontal: | Horizontal Gravel Sand Pump |
| Application: | Mining,Coal,Metallurgy,Dredging,Power Plant,Chemical Plant Etc |

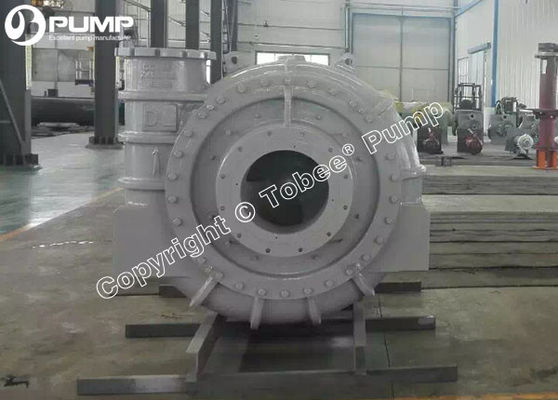

Tobee® China Sand Dredging Booster Pump Manufacturers is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life.
Tobee® China Sand Dredging Booster Pump Manufacturers Specification:
Size: 4" to 18"
Capacity: 36-4320m3/h
Head: 5m-80 m
Max. frame power: 1400kw
Handling solids: 0-260mm
Concentration: 0-70%
Material: High chrome alloy, Cast iron, Stainless steel etc
Tobee® China Sand Dredging Booster Pump Manufacturers Detailed specification:
1. Advanced hydraulic dredging sand pump model, CAD 3D design, high efficiency and obvious energy-saving.
2. Large dredging sand depth, high density of dredging mud, good pump NPSH and strong suction lift ability.
3. Strong through-put. The dredging pump can persistently discharge gravel, high plastic soil lump,etc.
4. The gravel sand pump can be directly matched with either motor or diesel engine.
5. Wide application.The gravel sand pump can be used in various kinds of soil quality. Generally,the dredge sand pump is matched with an impeller with 3 or 5 pieces of vane. At the same time,the impellers can be provided with various diameters and vane types to suit kinds of working conditions.
6. Little hydraulic loss, high efficiency and low oil-consumption.
7. Little volume, light weight.
8. Steady operating, little vibration, low noise.
9. Simple & reliable construction, easily disassembly & assembly,convenient maintain.
10. Reliable sealing without leakage.
11. Long operating life of parts.
Tobee® China Sand Dredging Booster Pump Manufacturers Performance Parameter:
| Model | Outlet Dia. (mm) |
Clear water performance |
Impeller dia. (mm) |
Max. Solid (mm) |
|||||
| Speed n (rpm) |
Flow Q (m3/h) |
Head H (m) |
Eff.η (%) |
Max. Power (kw) |
|||||
| 6/4D-G | 100 | 600-1400 | 36-250 | 7-56 | 50 | 60 | 378 | 82 | |
| 8/6E-G | 150 | 800-1400 | 180-540 | 12-52 | 60 | 120 | 378 | 120 | |
| 10/8F-G | 200 | 500-1000 | 180-820 | 12-56 | 60 | 560 | 533 | 178 | |
| 12/10G-G | 250 | 400-850 | 360-1200 | 12-60 | 65 | 600 | 667 | 220 | |
| 14/12G-G | 300 | 300-700 | 700-2700 | 8-70 | 65 | 600 | 864 | 241 | |
| 14/12TU-G | 300 | 300-700 | 700-2700 | 8-70 | 65 | 1200 | 864 | 241 | |
| 10/8F-GH | 200 | 500-1100 | 50-900 | 20-90 | 60 | 560 | 610 | 180 | |
| 12/10G-GH | 250 | 350-700 | 500-2000 | 20-80 | 70 | 600 | 915 | 210 | |
| 16/14TU-GH | 350 | 250-500 | 1000-2800 | 20-80 | 70 | 1200 | 1200 | 230 | |
Tobee® China Sand Dredging Booster Pump Manufacturers Component Diagram:
Tobee® China Sand Dredging Booster Pump Manufacturers Structural Drawing:
Tobee® China Sand Dredging Booster Pump Manufacturers Shaft Seal:
Packing seal:
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.
Expeller seal:
The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.
Mechanical seal:
TH series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.
Tobee® China Sand Dredging Booster Pump Manufacturers Drive Type:
Tobee® China Sand Dredging Booster Pump Manufacturers Quality Control:
| Stages of manufacture | Quality cotrol activities |
| Raw material arrival | Sampling, material chemical analysis |
| Casting and composition | Material material chemical analysis of pump parts |
| Casting quality inspection | |
| Key component machining | Dimension precision inspection |
| Impeller balancing | |
| General assembly | Procedure operaion |
| Hydraulic static test | |
| Performance test of pump unit | Capacity and head |
| Vibration and noise | |
| Bearing temperature | |
| Final inspection | Packaging of pump unit |
| Documents | |
| Spare parts and accessories |
Tobee® China Sand Dredging Booster Pump Manufacturers Service:
As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.
Packing Transport Services
Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.
Installation Services
Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.
Technical Support Services
Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.
Tobee® China Sand Dredging Booster Pump Manufacturers On-Site Application:
1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying
2)Metallurgy:Transport various slurry for aluminium or steel manufacture
3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation
4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation
5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation
6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation
7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation
Tobee® G Sand Gravel Pump Spare parts:
FAQ:
Note:
* Tobee® is a registered trademark and does not represent or is not in any way affiliated with ® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Pumps.
* Tobee® gravel pumps and spares are only interchangeable with ® gravel pumps and spares.
* This document is the property of Tobee® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
