|Name:||Vertical Slurry Sewage Pump||Size (discharge):||65mm|
|Materials:||High Chrome Alloy, Rubber, Polyurethane, Ceramic, Stainless Steel Etc.||Uasge:||Mining, Liquid Sulphur, Sulfuric Acid, Molten Salt, Sulfuric Acid, Nitric Acid, Paper And Pulp, Sump Dredging, Mill Grinding|
|Type:||Vertical Centrifugal Slurry Pump||Model:||65mm Vertical Sump Slurry Pump|

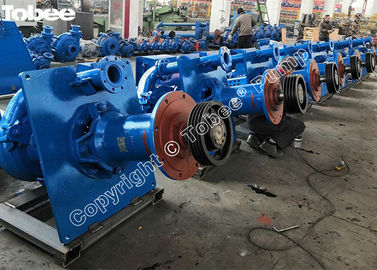

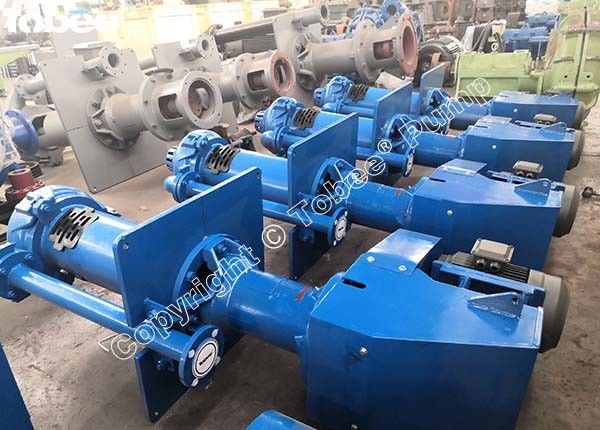

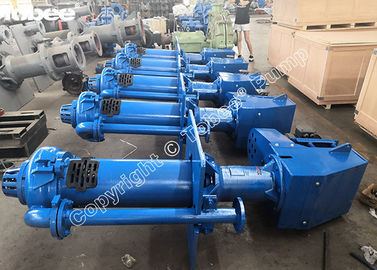

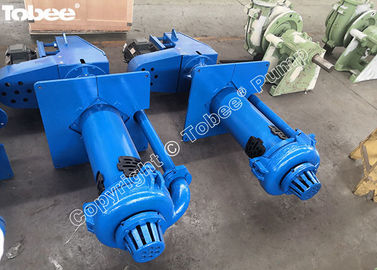

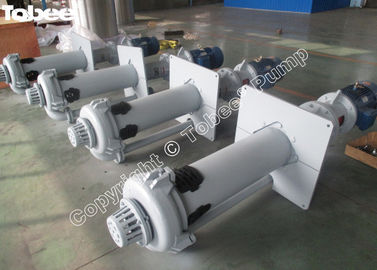

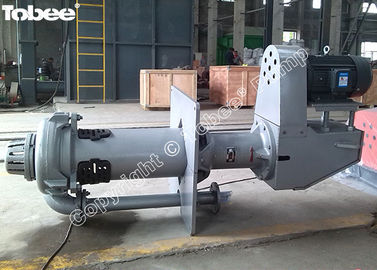

Tobee® 65 QV - SP Vertical Slurry Sewage Pump is a cantilever sump pump,Which work submerged to transport high abrasive and high density slurries with large particles.It doesn't need any seal water. Hard metal lined or fully rubber lined fitted.High capacity double suction semi-open impeller design.and suction agitator is also available.
Tobee® 65 QV - SP Vertical Slurry Sewage Pump Design features:
1.Vertical,Submerged,Cantilevered shaft sump slurry pump
2.Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones.
3..Column Assembly - Completely fabricated from antiwear carbon steel. The SPR model is rubber covered.
4.Shaft - Different length of the pump drive shaft or suction extension pipe could be selected
5.Casing - SP(R) has a simple bolt-on attachment to the base of the column. It is manufactured from a wear resistant alloy for the SP pump series and from moulded Rubber for the SPR pump series.
6.Impeller - Double suction semi-open impeller design, Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable.
7.Upper Strainer - Drop-in metal mesh; snap-on elastomer or polyurethane for SP and SPR pumps. Strainers fit in column openings.
8.Lower Strainer - Bolted metal or polyurethane for SP pumps; moulded snap-on elastomer for SPR pumps.
9.Discharge Pipe - Metal for SP pumps; Rubber covered for SPR pumps. All wetted metal parts are completely rust protected
10..Agitator option keeps solids in suspension,Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.
11.Don’t need any seal and seal water.
Tobee® Vertical Slurry Pump Quick Selection Chart:
Tobee® 65 QV - SP Vertical Slurry Sewage Pump Component Design:
Tobee® 65 QV - SP Vertical Slurry Sewage Pump On-site Applications:
|• Mining||• Sump drainage||• Coal prep||• Mineral processing|
|• Mill sumps||• Tunnel||• Tailings||• Chemical slurries|
|• Ash handing||• Paper and Pulp||• Waste sludge||• Coarse sand|
|• Lime mud||• Phosphoric acid||• Sump Dredging||• Mill grinding|
|• Alumina Industry||• Power Plant||• Potash Fertilizer Plant||• Other industries|
