|Name:||Hydraulic Submersible Sand Pump||Size:||100-350mm|
|Max. Particles:||120mm||Max. Concentration:||70%|
|Temperature Range:||≤80°C||Agitator Or Cutterheads:||Available|
|Sealing Arrangement:||Double Mechanical Seal||Materials:||High Chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 Etc|
|Type:||Hydraulic Submersible Sand Pump||Model:||THY Submersible Sand Pump|
|Others:||Hydraulic Submersible Sand Pump||Application:||Sand Extraction And Transport, Sand And Gravel Mining, Dredging Harbors And Marinas, Port Maintenance, Dredging Of Canals And Harbors, Clean-up Of Rivers, Lakes And Lagoons, Dam Dredging, Beach Reclamation, Heavy Soils Etc|

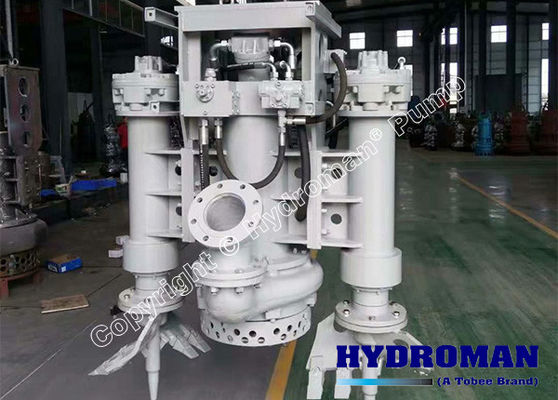

Hydroman™(A Tobee Brand) Hydraulic Submersible Sand Slurry Pump is designed for handling rocks, slurry, gravel, sand, stone, minerals, bentonite and others, with the shortest delivery times. Hydroman pumps deliver massive solids production at very low operational costs. The THY hydraulic sand pump can install cutters or agitators on various excavators to work like submersible dredging pumps, It can be also used in various hydraulic stations.
Hydroman™(A Tobee Brand) Hydraulic Submersible Sand Slurry Pump Design Features:
√ Submersible heavy duty agitator pump, hydraulic driven with variable RPM
√ All Pumps have standard high efficiency agitator to lift settled solids.
√ High abrasion resistance with high chrome wear parts.
√ Low rotation speed to reduce wear effect.
√ Agitators, Cutters, Excavators are available for options
√ Able to handle up to 70% solids by weight.
√ Easy installation on the boom of hydraulic excavators.
Hydroman™(A Tobee Brand) Hydraulic Submersible Sand Slurry Pump Structural Drawing:
Hydroman™(A Tobee Brand) Hydraulic Submersible Sand Slurry Pump Applications:
Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc
Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc
Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.
Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc
