Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship

China Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship supplier
Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship supplier Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship supplier Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship supplier Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship supplier

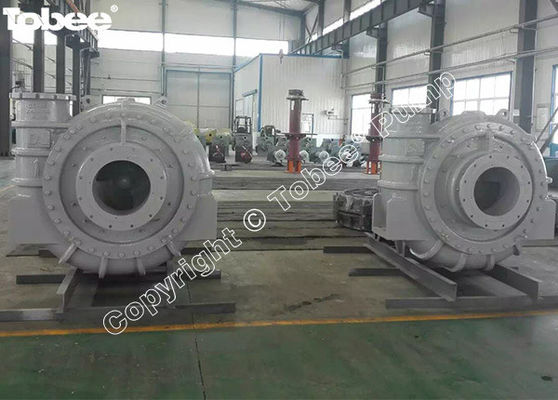

Large Image :  Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship

Product Details:

Place of Origin: China
Brand Name: Tobee Pump
Certification: ISO,CE,SGS
Model Number: G Gravel Pump

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 5800
Detailed Product Description
Size: 4" To 18" Name: Sand Gravel Pump Manufacturers
Model: China Gravel Sand Pump Type: Gravel Sand Pump
Capacity: 36-4320m3/h Head: 5m-80 M
Speed: 600-1400rpm NPSHr: 2-5.5m
Handling Solids: 0-260mm Concentration: 0-70%
Seal Arrangements: Packing Seal, Expeller Seal, Mechanical Seal No. Of Vanes: 2~5 Vanes
Impeller Suction Way: End Suction Gravel Pump Shaft Position From The Horizontal: Horizontal Gravel Sand Pump
Application: Mining,Coal,Metallurgy,Dredging,Power Plant,Chemical Plant Etc

Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life.



Specification:



Size: 4" to 18"
Capacity: 36-4320m3/h
Head: 5m-80 m
Max. frame power: 1400kw
Handling solids: 0-260mm
Concentration: 0-70%
Material: High chrome alloy, Cast iron, Stainless steel etc



Detailed specification:

1. Advanced hydraulic dredging sand pump model, CAD 3D design, high efficiency and obvious energy-saving.

2. Large dredging sand depth, high density of dredging mud, good pump NPSH and strong suction lift ability.

3. Strong through-put. The dredging pump can persistently discharge gravel, high plastic soil lump,etc.

4. The gravel sand pump can be directly matched with either motor or diesel engine.

5. Wide application.The gravel sand pump can be used in various kinds of soil quality. Generally,the dredge sand pump is matched with an impeller with 3 or 5 pieces of vane. At the same time,the impellers can be provided with various diameters and vane types to suit kinds of working conditions.

6. Little hydraulic loss, high efficiency and low oil-consumption.

7. Little volume, light weight.

8. Steady operating, little vibration, low noise.

9. Simple & reliable construction, easily disassembly & assembly,convenient maintain.

10. Reliable sealing without leakage.

11. Long operating life of parts.



Tobee® Sand Suction Dredge Pump Performance Parameter:



Model Outlet Dia.
(mm)
Clear water performance

Impeller dia.

(mm)

Max. Solid
(mm)
Speed n
(rpm)
Flow Q
(m3/h)
Head H
(m)

Eff.η

(%)

Max. Power
(kw)
6/4D-G 100 600-1400 36-250 7-56 50 60 378 82
8/6E-G 150 800-1400 180-540 12-52 60 120 378 120
10/8F-G 200 500-1000 180-820 12-56 60 560 533 178
12/10G-G 250 400-850 360-1200 12-60 65 600 667 220
14/12G-G 300 300-700 700-2700 8-70 65 600 864 241
14/12TU-G 300 300-700 700-2700 8-70 65 1200 864 241
10/8F-GH 200 500-1100 50-900 20-90 60 560 610 180
12/10G-GH 250 350-700 500-2000 20-80 70 600 915 210
16/14TU-GH 350 250-500 1000-2800 20-80 70 1200 1200 230





































Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship Component Diagram:





Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship

Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship Structural Drawing:

Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship

Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship Shaft Seal:



Packing seal:

As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.



Expeller seal:

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.



Mechanical seal:

TH series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.



Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship Drive Type:

Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship



Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship Quality Control:



Stages of manufacture Quality cotrol activities
Raw material arrival Sampling, material chemical analysis
Casting and composition Material material chemical analysis of pump parts
Casting quality inspection
Key component machining Dimension precision inspection
Impeller balancing
General assembly Procedure operaion
Hydraulic static test
Performance test of pump unit Capacity and head
Vibration and noise
Bearing temperature
Final inspection Packaging of pump unit
Documents
Spare parts and accessories













































Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship After-sales Service:



As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.



Packing Transport Services

Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.



Installation Services

Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.



Technical Support Services

Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.



Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship On-Site Application:

Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship

1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying

2)Metallurgy:Transport various slurry for aluminium or steel manufacture

3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation

4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation

5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation

6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation

7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation



Tobee®  G Sand Gravel Pump Spare parts:



Tobee® Mud and sand pumps with diesel engine used in suction gold dredging ship



FAQ:

1.Q:Are you a factory or trading company?

A:We are a big manufacturing pump factory with 30 years experience.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is The material of your pumps?

A: The materials can be selected by High chrome alloy or Rubber,Polyurethane,Cast iron,SS304,SS316,CD4MCu,Duplex SS,Bronze etc. We can also choose material as customers’ requirement.

4.Q:How can I get some samples?

A: We are honored to offer you samples.

5.Q:How does your factory do regarding quality control?

A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~20QC.










Note:



* Tobee® is a registered trademark and does not represent or is not in any way affiliated with ® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Pumps.

* Tobee® gravel pumps and spares are only interchangeable with ® gravel pumps and spares.

* This document is the property of Tobee® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
