Vertical Mining Slurry Pumps

China Vertical Mining Slurry Pumps supplier
Vertical Mining Slurry Pumps supplier Vertical Mining Slurry Pumps supplier Vertical Mining Slurry Pumps supplier Vertical Mining Slurry Pumps supplier

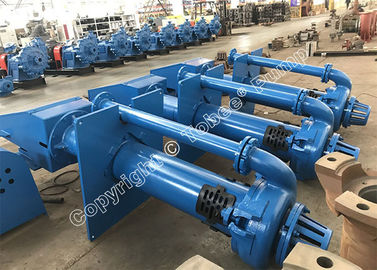

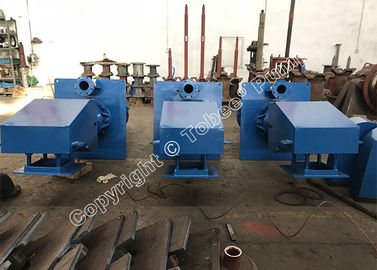

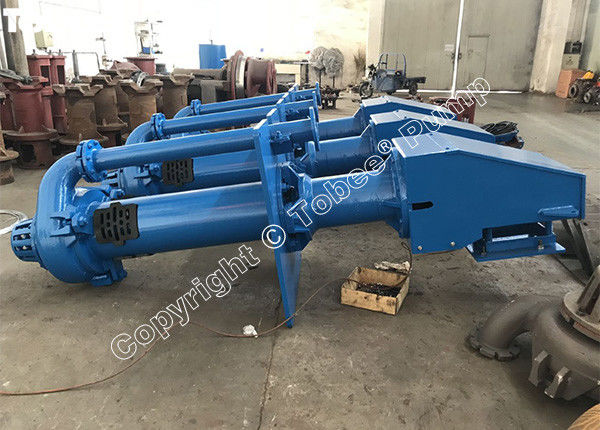

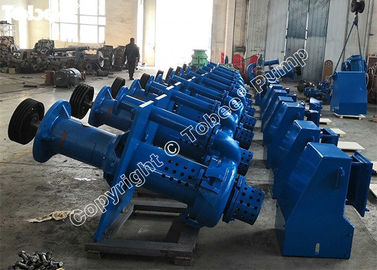

Large Image :  Vertical Mining Slurry Pumps

Product Details:

Place of Origin: China
Brand Name: Tobee®
Certification: ISO, CE, SGS
Model Number: SP(R) Vertical Slurry Pump

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Wooden case
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 5800
Contact Now
Detailed Product Description
Name: Vertical Mining Slurry Pumps Size (discharge): 40mm To 300mm
Capacity: 7.28-1300 M3/h Head: 3m-45 M
Handing Solids: 0-79mm Concentration: 0%-70%
Materials: High Chrome Alloy, Rubber, Polyurethane, Ceramic, Stainless Steel Etc. Uasge: Mining, Liquid Sulphur, Sulfuric Acid, Molten Salt, Sulfuric Acid, Nitric Acid, Paper And Pulp, Sump Dredging, Mill Grinding
Type: Vertical Centrifugal Slurry Pump Model: Vertical Sump Slurry Pump

Tobee® Vertical Mining Slurry Pumps is a cantilever sump pump,Which work submerged to transport high abrasive and high density slurries with large particles.It doesn't need any seal water. Hard metal lined or fully rubber lined fitted.High capacity double suction semi-open impeller design.and suction agitator is also available.

Tobee® Vertical Mining Slurry Pumps Design Features:


1.Vertical,Submerged,Cantilevered shaft sump slurry pump
2.Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones.
3..Column Assembly - Completely fabricated from antiwear carbon steel. The SPR model is rubber covered.
4.Shaft - Different length of the pump drive shaft or suction extension pipe could be selected
5.Casing - SP(R) has a simple bolt-on attachment to the base of the column. It is manufactured from a wear resistant alloy for the SP pump series and from moulded Rubber for the SPR pump series.
6.Impeller - Double suction semi-open impeller design, Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable.
7.Upper Strainer - Drop-in metal mesh; snap-on elastomer or polyurethane for SP and SPR pumps. Strainers fit in column openings.
8.Lower Strainer - Bolted metal or polyurethane for SP pumps; moulded snap-on elastomer for SPR pumps.
9.Discharge Pipe - Metal for SP pumps; Rubber covered for SPR pumps. All wetted metal parts are completely rust protected
10..Agitator option keeps solids in suspension,Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.
11.Don’t need any seal and seal water.


Tobee® Vertical Slurry Pump Quick Selection Chart:

Vertical Mining Slurry Pumps


Tobee® Vertical Mining Slurry Pumps Component Design:

Vertical Mining Slurry Pumps


Tobee® Vertical Mining Slurry Pumps On-site Applications:

Vertical Mining Slurry Pumps

• Mining • Sump drainage • Coal prep Mineral processing
• Mill sumps Tunnel • Tailings Chemical slurries
• Ash handing • Paper and Pulp • Waste sludge • Coarse sand
• Lime mud • Phosphoric acid • Sump Dredging Mill grinding
• Alumina Industry • Power Plant • Potash Fertilizer Plant • Other industries
