High pressure diesel irrigation pump 10 inch

China High pressure diesel irrigation pump 10 inch supplier

Large Image :  High pressure diesel irrigation pump 10 inch

Product Details:

Place of Origin: Hebei
Brand Name: TOBEE PUMP
Certification: ISO,CE,SGS
Model Number: TD(G)

Payment & Shipping Terms:

Price: 1200
Packaging Details: Wooden case
Delivery Time: 7 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5800
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

Tobee™ TD(G) Multistage Pump is the horizontal type, the single suction multistage, the segmental centrifugal pump. Has the efficiency to be high, the performance range is broad, the movement safe steady, the noise is low, the life is long, characteristics and so on installment service convenience. Are similar for the transportation clear water or the physics chemical properties to water other liquids.

Specification:
Capacity: 3.75-670m³/h
Head:8-1800m
Power: 5.5-4000kw

Speed:980-2950r/min
Materials:Cast iron,SS304,SS316L,Duplex stainless steel etc

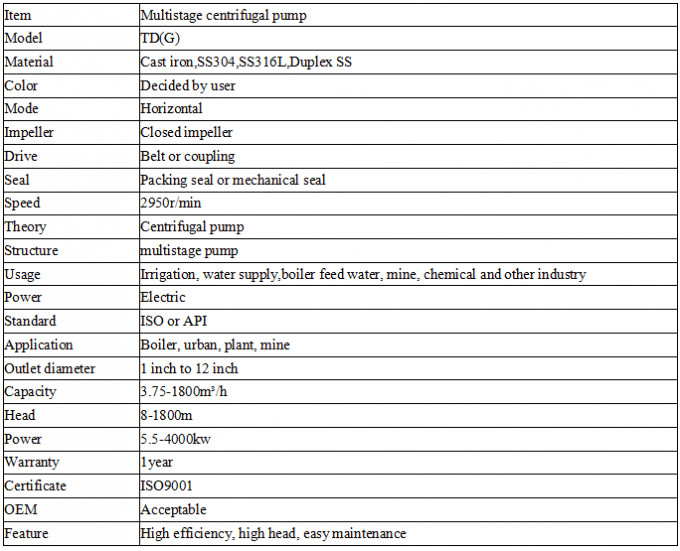

Detailed specification:
High pressure diesel irrigation pump 10 inch
Tobee™ TD(G) Multistage Pump Performance Parameter:
High pressure diesel irrigation pump 10 inch

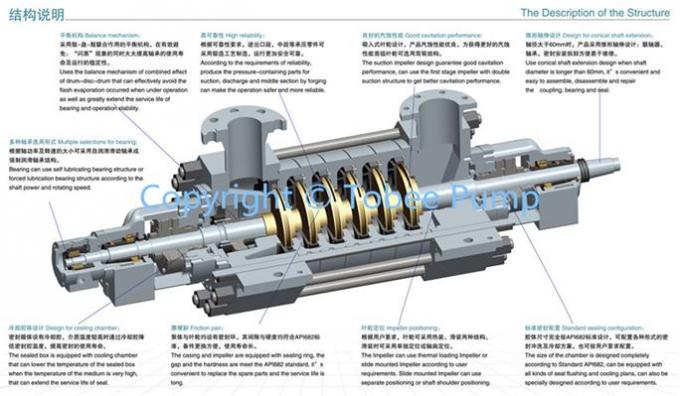

Tobee™ TD(G) Multistage Pump Component Diagram:
High pressure diesel irrigation pump 10 inch

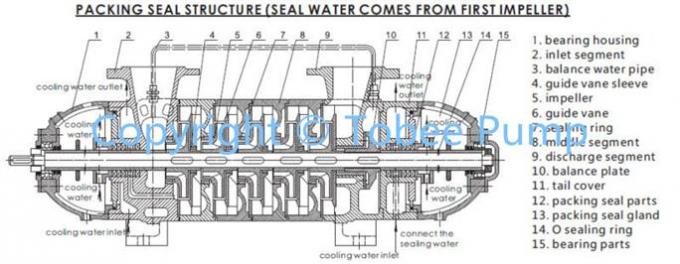

Tobee™ TD(G) Multistage Pump Structural Drawing:

High pressure diesel irrigation pump 10 inch

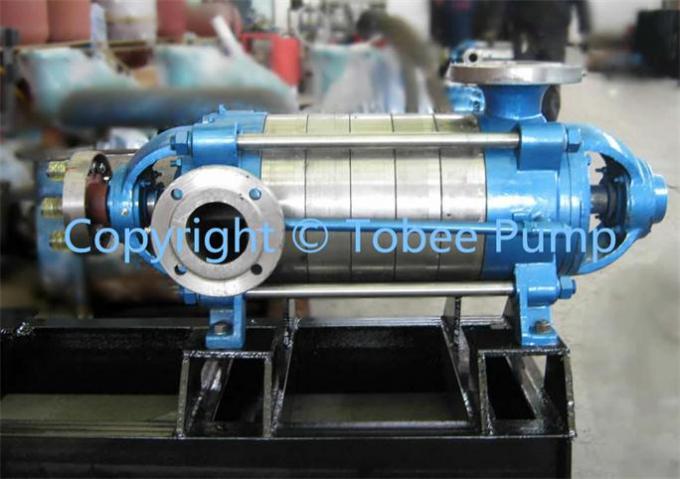

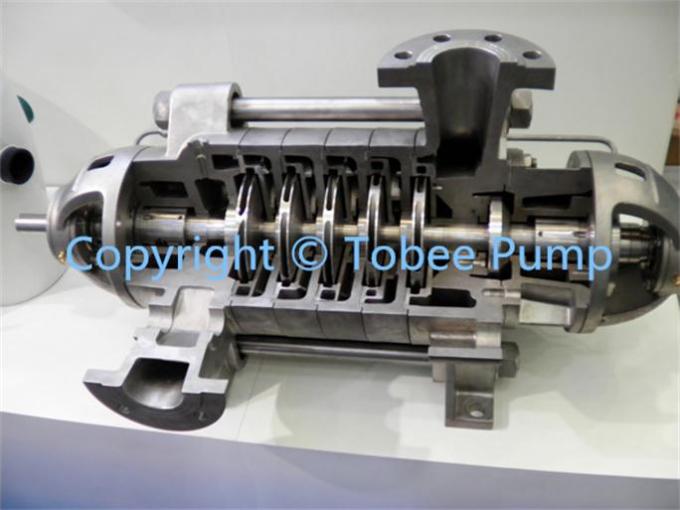

Tobee™ TD(G) Multistage Pump Display:

High pressure diesel irrigation pump 10 inchHigh pressure diesel irrigation pump 10 inch

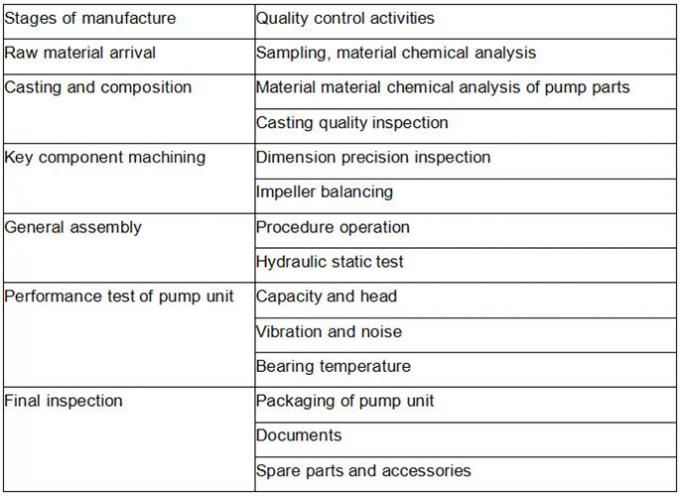

Tobee™ TD(G) Multistage Pump Quality Control:
TH Slurry Pump

Tobee™ TD(G) Multistage Pump After-sales Service:
As the pump wetted parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.

Packing Transport Services
Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.

Installation Services
Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.

Technical Support Services
Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.

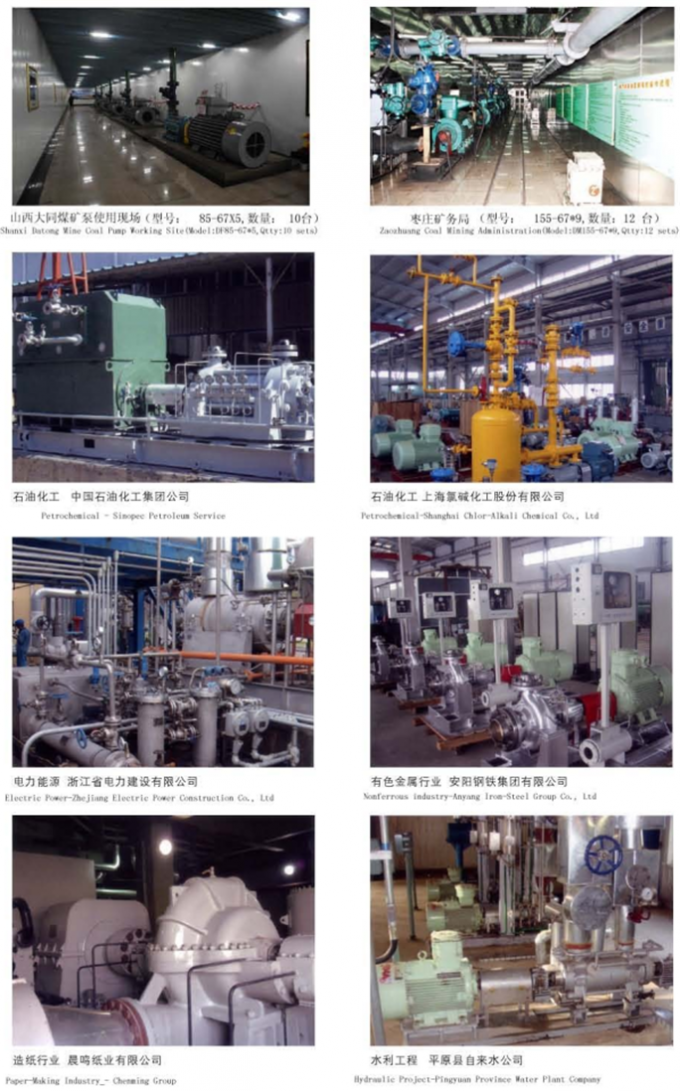

Tobee™ TD(G) Multistage Pump On-Site Application:
High pressure diesel irrigation pump 10 inch
1) Water supply and discharge in high-rise buildings
2) Fire water supply in constructions
3) Water supply and discharge in factories and mines
4) Long distance delivery
5) Cyclic pressurization in production

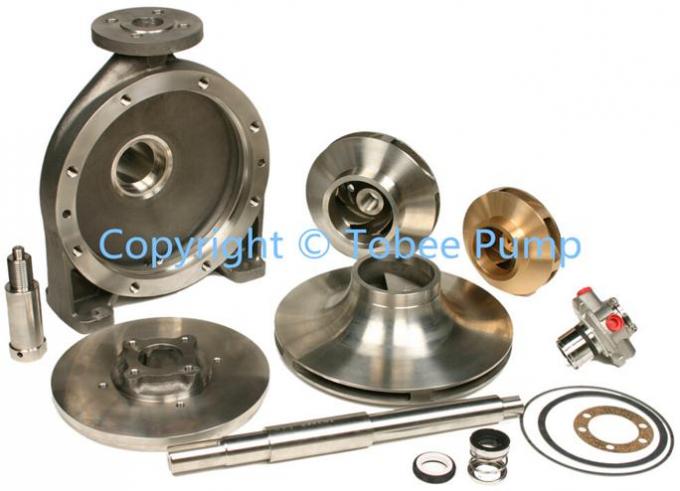

Tobee™ TD(G) Multistage Pump Spare parts:

High pressure diesel irrigation pump 10 inch
FAQ:

1.Q:Are you a factory or trading company?

A:We are a factory.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is The material of your products?

A: The material is High chrome alloy or Rubber. We can also choose material as customers’ requirement.

4.Q:How can I get some samples?

A: We are honored to offer you samples.

5.Q:How does your factory do regarding quality control?

A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~20QC.
