Tobee™ Molten Salt Sump Pump

China Tobee™ Molten Salt Sump Pump supplier

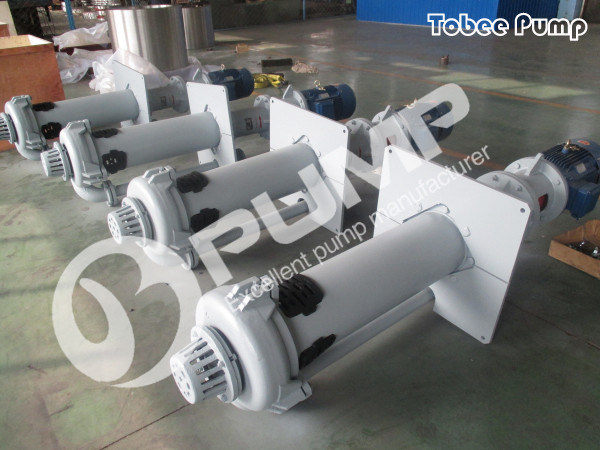

Large Image :  Tobee™ Molten Salt Sump Pump

Product Details:

Place of Origin: Hebei
Brand Name: Tobee Pump
Certification: ISO,CE,SGS
Model Number: TY

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1200
Packaging Details: Wooden case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 5800
Contact Now
Detailed Product Description
Theory: Centrifugal Pump Structure: Single-stage Pump
Usage: Water Power: Electric
Standard Or Nonstandard: Standard Fuel: Diesel
Pressure: High Pressure Application: Molten Salt Tank

Tobee® TY Molten Salt Sump Pump also known as vertical molten salt pump and high temperature sump pump, This type pump was designed with many years of production experient in sump pumps by Tobee Group, and heat-resistant technology and quality have reached the leading level in the world, It is a optimal pump type for transporting high temperature liquids in chemical industry,Especially for transporting high temperature Sulfur liquids and molten salts etc.



SPECIFICATIONS:

Size: 25-200mm
Operating temperature(T): 180℃~800℃
Capacity(Q): 3-400m3/h
Head(H): 5-125m
Speed(n): 980/1450/2860 r/min
Submerged depth(L): 0.6-8m
Materials: Heat-resisting cast steel



Design features:



• TY series high temperature molten salt pump is a vertical pump, mainly composed of pump body, pump cover, impeller, pump shaft, takeover, fluid tubes, bearing support, motor bracket, bracket, installation base plate, coupling, cooling water pipe, vertical motor etc.
• Backplane hereafter called fluid, a portion of the pump installation when it insert in the molten salt tank (tank), pump body, impeller, pump cover are immersed in molten salt below the liquid surface, through the impeller rotating pumping molten salt, pump shaft by supporting tube and installation base plate at the top of the bracket, bracket, motor bracket and connected.
• In a rolling bearing bracket, by the high temperature lubricating grease.On bearing bracket shell is equipped with cooling jacket, water cooling, in order to reduce the temperature of the grease in the bearing support.Bearing support the following stent lumen also have water cooling, to prevent liquid transmission part quantity of heat to the bearing support, reducing the bearing temperature.Due to the dual cooling to ensure the pump work normally at high temperature.
• Pump shaft is usually a long shaft, shaft above is rolling bearing, axis is below the metal sliding bearing.Pumping high temperature molten salt pump, submerged depth is longer than the pump shaft will consist of two or three segments, with rigid coupling between pick up into a long axis, and in the central axis with metal sliding bearing in the middle of the bearing.Pumping submerged depth of the molten salt pump is small, without intermediate bearing.
• The inlet of high temperature molten salt pump body, only the suction pipe are in the following fashion: when using the molten salt pump, when the liquid level to higher level open pump, draw the liquid surface to pump inlet side (lower level) to stop the pump, and waited to open pump on the liquid surface, at this moment if submerged depth is deeper, into the suction pipe can be under the same depth is relatively short pump shaft, the length of the supporting tube, fluid pipe, make the pump running smoothly, prolong service life, reduce the weight of molten salt pump, molten salt pump cost;If molten salt pump when used in any liquid level position to stop the pump or pump, cannot install the suction pipe.
• When the pump is easy to gasification and high temperature liquid (such as high temperature oil), the pump outlet pipe and under the high temperature liquid pump stents in have high temperature sealing device to prevent gas leakage
• With the advantages of high efficiency, stable operating, little vibration, low noise, long service life, less maintenance, low maintenance cost etc



Tobee™ TY Molten Salt Sump Pump Performance Parameter:



Tobee™ Molten Salt Sump Pump



Tobee™ TY Molten Salt Sump Pump Component Diagram:



Tobee™ Molten Salt Sump Pump



Tobee™ TY Molten Salt Sump Pump Structural Drawing:



Tobee™ Molten Salt Sump Pump



Tobee™ TY Molten Salt Sump Pump Drive Type:



Tobee™ Molten Salt Sump Pump



Tobee™ TY Vertical Molten Salt Pump Quality  Control:



TH Slurry Pump



Tobee™ TY Molten Salt Sump Pump After-sales Service:



As the molten salt pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.



Packing Transport Services

Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company  and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.

Installation Services

Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.

Technical Support Services

Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.



Tobee™ Pumps On-Site Application:

TH Slurry Pump

1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.

2)Metallurgy:Transport various slurry for aluminium or steel manufacture.

3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.

4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.

5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.

6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.

7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.



Tobee™ TY Molten Salt Sump Pump Spare parts:

TH Slurry Pump



FAQ:

1.Q:Are you a factory or trading company?

A:We are a factory.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is The material of your products?

A: The material is High chrome alloy or Rubber. We can also choose material as customers’ requirement.

4.Q:How can I get some samples?

A: We are honored to offer you samples.

5.Q:How does your factory do regarding quality control?

A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.  Our factory has 15~20QC.
